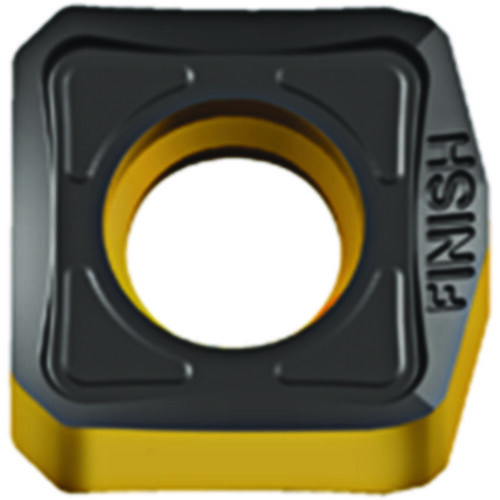

XNGX1205ENN-F67 WAK15
Milling Insert; 12.7 mm Length × 12.7 mm Width × 6.08 mm Thickness ; WAK15 ; Carbide ; | TiCN | TiN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 12.7 mm | Insert Style | XNGX |
| Corner Radius (RE) | 0.6 mm | Insert Size | 1205 |
| Depth of Cut Maximum (APMX) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 12.7 mm | Chip Breaker Type | F67 |
| Inscribed Circle Diameter (IC) | 1/2″ | Series/List # | XNGX-WAK15 |
| Insert Thickness (S) | 6.08 mm | Hole Diameter | 6.1 mm |
| Insert Included Angle (EPSR) | 128.57 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | TiN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WAK15 | Number of Cutting Edges | 2 |
Product Features
| Family Description | XNGX1205ENN-F67 WAK15 | Country of Origin | Germany |
Shipping Info
Package Weight
0.234
