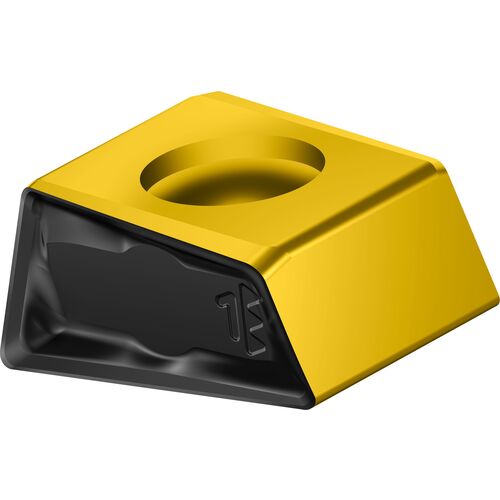

LNHX0904PDR-L55T Grade WAK15
Milling Insert; 9 mm Length × 8.5 mm Width × 4.5 mm Thickness ; WAK15 ; Carbide ; | TiCN | TiN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Shape | Rectangle |
| Cutting Edge Length (L) | 9 mm | Insert Style | LNHX |
| Corner Radius (RE) | 0.4 mm | Insert Size | 904 |
| Depth of Cut Maximum (APMX) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 8.5 mm | Chip Breaker Type | L55T |
| Inscribed Circle Diameter (IC) | 0.177″ | Series/List # | LNHX-WAK15 |
| Insert Thickness (S) | 4.5 mm | Hole Diameter | 3.4 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | TiN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WAK15 | Number of Cutting Edges | 2 |
Product Features
| Family Description | LNHX0904PDR-L55T WAK15 | Country of Origin | Germany |
Shipping Info
Package Weight
0.004
