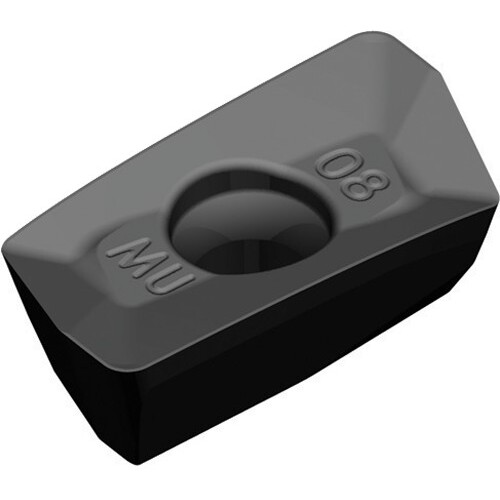

XDPT1102SRMM WK15CM INSERT
Milling Insert; 0.529″ Length × 0.272″ Width × 0.157″ Thickness ; WK15CM ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Cast Iron | | Shape | 75° Parallelogram |
| Cutting Edge Length (L) | 0.529″ | Insert Style | XDPT |
| Corner Radius (RE) | 0.031″ | Insert Size | 1102 |
| Depth of Cut Maximum (APMX) | 0.462″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.272″ | Chip Breaker Type | MM |
| Inscribed Circle Diameter (IC) | 0.2714″ | Hole Diameter | 0.118″ |
| Insert Thickness (S) | 0.157″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 75 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiN | TiCN | | Number of Cutting Edges | 2 |
| Grade | WK15CM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0065
