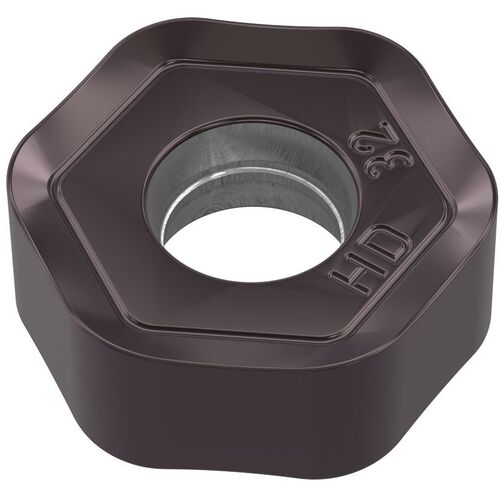

HNPJ0704ANSNHD WP25PM M1200 MINI INSERT
Milling Insert; HNPJ0704ANSNHDM1200WP25PM WP25PM 0.269″ Length × 0.174″ Thickness ; Carbide ; TiAlN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 120° Hexagon |
| Cutting Edge Length (L) | 1/2″ | Insert Style | HNPJ |
| Corner Radius (RE) | 3/64″ | Insert Size | 704 |
| Depth of Cut Maximum (APMX) | 0.269″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 1/2″ | Chip Breaker Type | HD |
| Inscribed Circle Diameter (IC) | 1/2″ | Hole Diameter | 0.197″ |
| Insert Thickness (S) | 0.174″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 120 Degrees | Tool Type | Double sided Inserts |
| Coating | AlTiN | Number of Cutting Edges | 12 |
| Grade | WP25PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.022
