APHT15T3PDR-K88 WK10

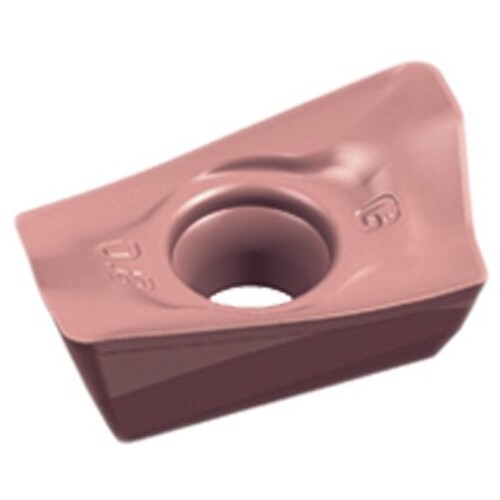

Milling Insert; 15.88 mm Length × 9.52 mm Width × 3.97 mm Thickness ; WK10 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Insert Style | APHT |
| Cutting Edge Length (L) | 15.88 mm | Insert Size | 15T3 |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 9.52 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 9.52 mm | Series/List # | APHT-WK10 |
| Insert Thickness (S) | 3.97 mm | Hole Diameter | 4.4 mm |
| Insert Included Angle (EPSR) | 85 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Single sided Inserts |
| Grade | WK10 | Number of Cutting Edges | 2 |
| Shape | 85° Parallelogram |
Product Features
| Family Description | APHT15T3PDR-K88 WK10 | Country of Origin | Germany |
Shipping Info
Package Length
.64000
Package Width
.38000
Package Height
.17000
Package Weight
0.025
