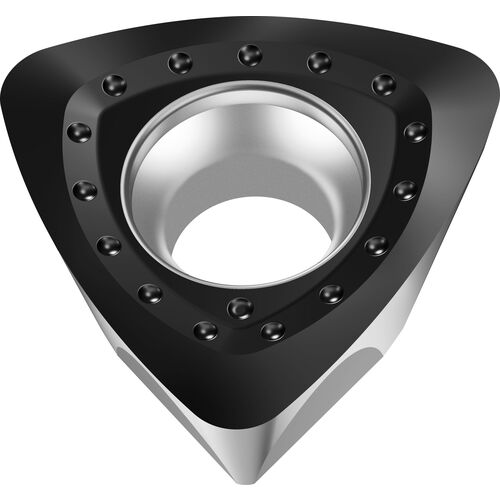

P26337R25 Grade WKP35S
Milling Insert; 0.512″ Length × 0.512″ Width × 5.56 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | Profile |
| Cutting Edge Length (L) | 0.512″ | Insert Style | P26337 |
| Corner Radius (RE) | 2 mm | Insert Size | P26337 |
| Depth of Cut Maximum (APMX) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.512″ | Series/List # | P26337-WKP35S |
| Inscribed Circle Diameter (IC) | 13 mm | Hole Diameter | 5.5 mm |
| Insert Thickness (S) | 5.56 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 60 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 3 |
| Grade | WKP35S |
Product Features
| Family Description | P26337R25 WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.236
