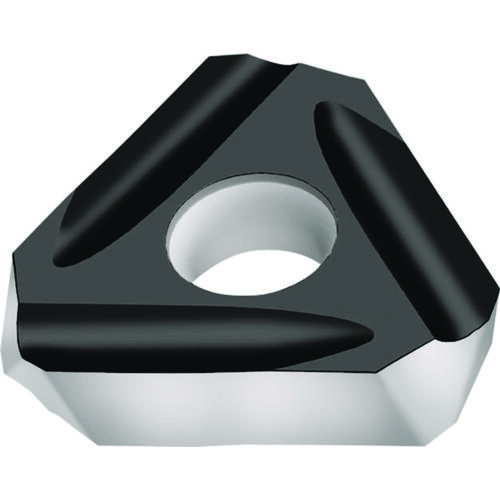

P23522-1R Grade WKP35S
Milling Insert; 0.59″ Length × 0.591″ Width × 4.5 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Insert Style | P2352 |
| Cutting Edge Length (L) | 0.59″ | Insert Size | P23522 |
| Depth of Cut Maximum (APMX) | 0.5906″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.591″ | Chip Breaker Type | Flat Top |
| Inscribed Circle Diameter (IC) | 15 mm | Series/List # | P23522-WKP35S |
| Insert Thickness (S) | 4.5 mm | Hole Diameter | 5.5 mm |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 6 |
| Shape | Triangle |
Product Features
| Family Description | P23522–1R WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.351
