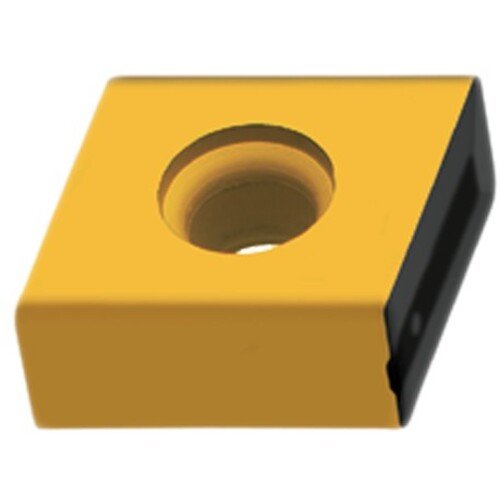

CNMU080508-D57T Grade WKP35S
Milling Insert; 8 mm Length × 9 mm Width × 5 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | 80° Diamond |
| Cutting Edge Length (L) | 8 mm | Insert Style | CNMU |
| Corner Radius (RE) | 0.8 mm | Insert Size | 80508 |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 9 mm | Chip Breaker Type | U |
| Inscribed Circle Diameter (IC) | 9 mm | Series/List # | CNMU-WKP35S |
| Insert Thickness (S) | 5 mm | Hole Diameter | 3.4 mm |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 2 |
Product Features
| Family Description | CNMU080508-D57T WKP35S | Country of Origin | Germany |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.008
