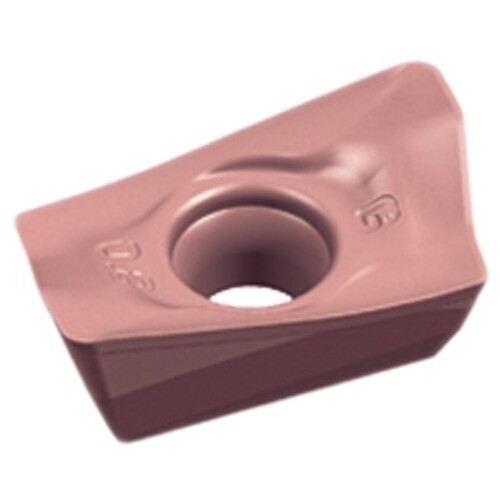

APHT15T3PDL-K88 Grade WK10
Milling Insert; 15.88 mm Length × 9.52 mm Width × 3.97 mm Thickness ; WK10 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 15.88 mm | Insert Style | APHT |
| Corner Radius (RE) | 0.8 mm | Insert Size | 15T3 |
| Depth of Cut Maximum (APMX) | 15 mm | Cutting Direction (HAND) | Left Hand |
| Insert Width (W1) | 9.52 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 0.3748″ | Series/List # | APHT-WK10 |
| Insert Thickness (S) | 3.97 mm | Hole Diameter | 4.4 mm |
| Insert Included Angle (EPSR) | 85 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Single sided Inserts |
| Grade | WK10 | Number of Cutting Edges | 2 |
Product Features
| Family Description | APHT15T3PDL-K88 WK10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.168
