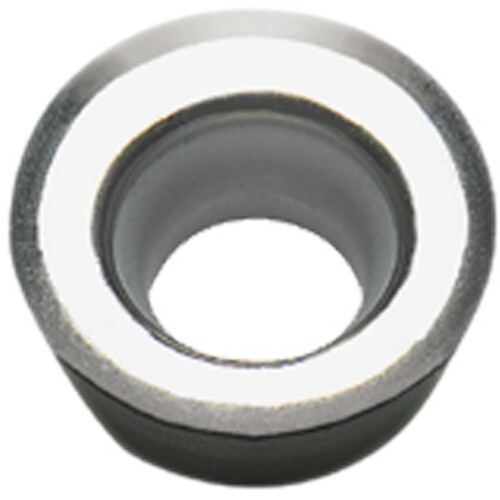

RPNT1204M0 Grade WTL71
Milling Insert; 12 mm Length × 12 mm Width × 4.76 mm Thickness ; WTL71 ; Carbide ; | TiCN | TiN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Shape | Round |
| Cutting Edge Length (L) | 12 mm | Insert Style | RPNT |
| Corner Radius (RE) | 6 mm | Insert Size | 1204M0 |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 12 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 12 mm | Series/List # | RPNT-WTL71 |
| Insert Thickness (S) | 4.76 mm | Hole Diameter | 4.4 mm |
| Insert Included Angle (EPSR) | 360 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | TiN | | Tool Type | Single sided Inserts |
| Grade | WTL71 | Number of Cutting Edges | 1 |
Product Features
| Family Description | RPNT1204M0 WTL71 | Country of Origin | Germany |
Shipping Info
Package Weight
0.146
