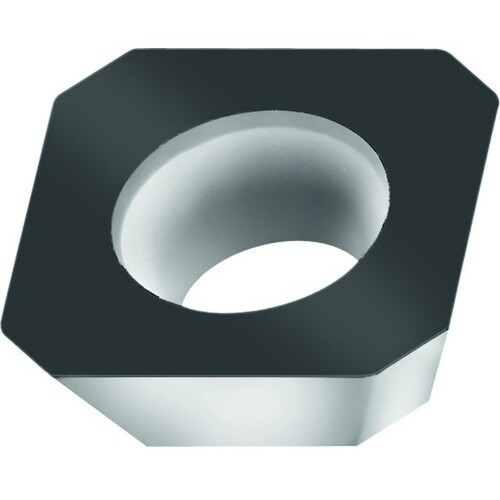

SEHW1204AFN Grade WKM
Milling Insert; 12.7 mm Length × 12.7 mm Width × 4.76 mm Thickness ; WKM ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Shape | Square |
| Cutting Edge Length (L) | 12.7 mm | Insert Style | SEHW |
| Corner Radius (RE) | 0.8 mm | Insert Size | 1204 |
| Depth of Cut Maximum (APMX) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 12.7 mm | Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 12.7 mm | Series/List # | SEHW-WKM |
| Insert Thickness (S) | 4.76 mm | Hole Diameter | 5.5 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Single sided Inserts |
| Grade | WKM | Number of Cutting Edges | 4 |
Product Features
| Family Description | SEHW1204AFN WKM | Country of Origin | Germany |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.17
