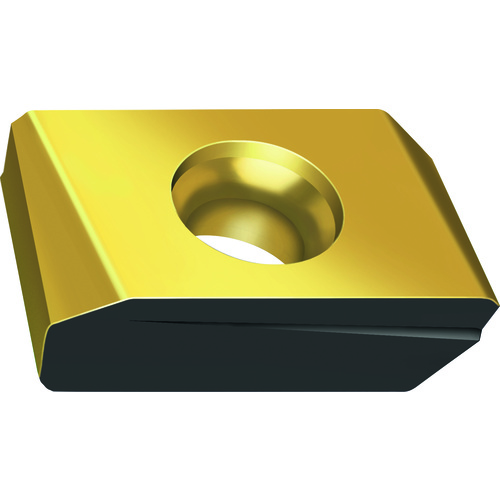

P45424-2-G67 Grade WAK15
Milling Insert; 20 mm Length × 12 mm Width × 6.5 mm Thickness ; WAK15 ; Carbide ; | TiCN | TiN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Shape | Rectangle |
| Cutting Edge Length (L) | 20 mm | Insert Style | P454 |
| Corner Radius (RE) | 0 mm | Insert Size | P45424 |
| Depth of Cut Maximum (APMX) | 20 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 12 mm | Chip Breaker Type | G67 |
| Inscribed Circle Diameter (IC) | 0.787″ | Series/List # | P45424-WAK15 |
| Insert Thickness (S) | 6.5 mm | Hole Diameter | 5.5 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | TiN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WAK15 | Number of Cutting Edges | 4 |
Product Features
| Family Description | P45424–2-G67 WAK15 | Country of Origin | Germany |
