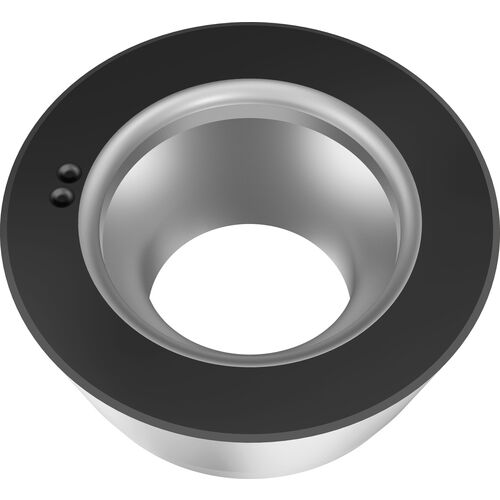

RDMW10T3M0T-A27 Grade WKP35S
Milling Insert; 0.3937″ Length × 0.3937″ Width × 3.97 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | Round |
| Cutting Edge Length (L) | 0.3937″ | Insert Style | RDMW |
| Corner Radius (RE) | 5 mm | Insert Size | 10T3M0 |
| Depth of Cut Maximum (APMX) | 0.1969″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.3937″ | Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 10 mm | Series/List # | RDMW-WKP35s |
| Insert Thickness (S) | 3.97 mm | Hole Diameter | 4.4 mm |
| Insert Included Angle (EPSR) | 360 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Single sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 4 |
Product Features
| Family Description | RDMW10T3M0T-A27 WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.086
