BDGT 11T308FR KPD230 Grade PCD, Indexable Milling Insert
Milling Insert; 0.1496″ Length × 0.2638″ Width × 0.15″ Thickness ; KPD230 ; PCD

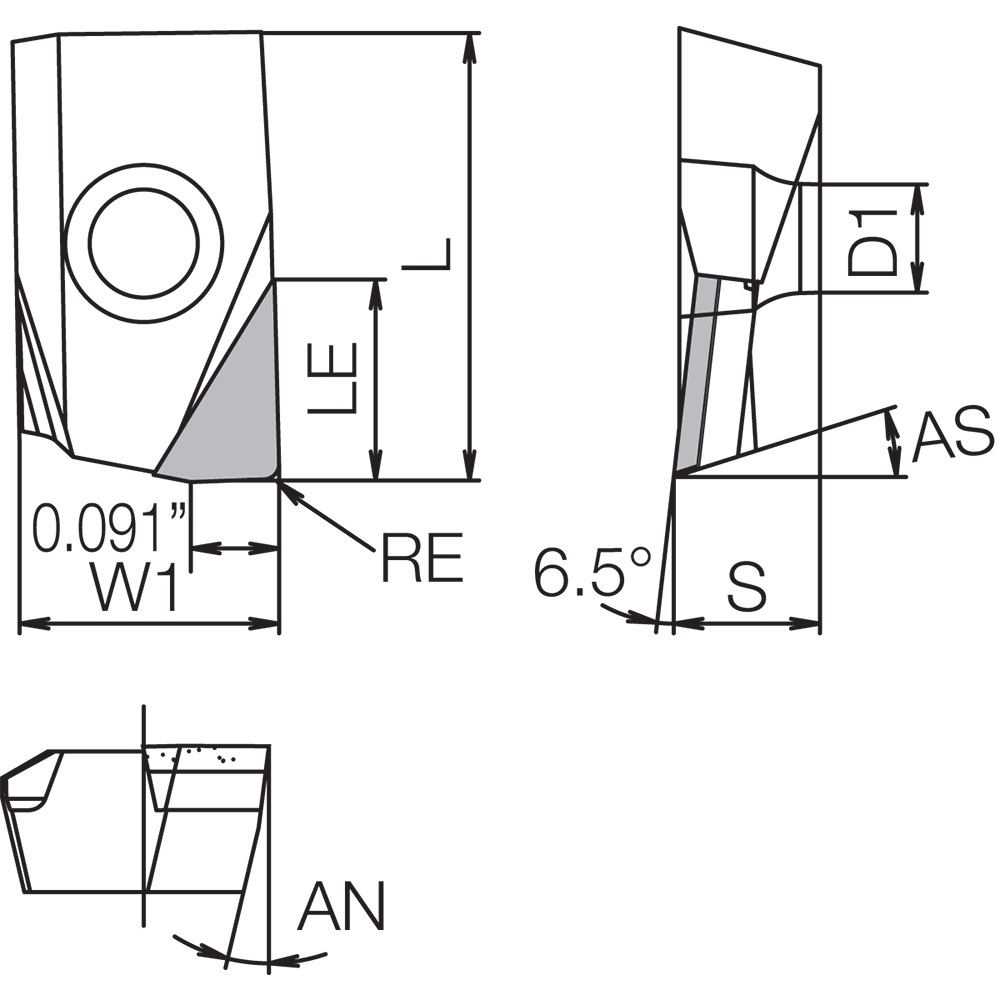

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 11T308 |
| Application | Facing | Helical Milling | Shouldering | Slotting | Clearance Angle Major (AN) | 13 Degrees |
| Cutting Edge Length (L) | 0.1496″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.4528″ | Chip Breaker Type | FR |
| Corner Radius (RE) | 1/32″ | Series/List # | MEC |
| Insert Width (W1) | 0.2638″ | Hole Diameter | 0.1102″ |
| Insert Thickness (S) | 0.15″ | Cutting Edge Material | PCD |
| Grade | KPD230 | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 1 |
| Insert Style | BDGT | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.026
