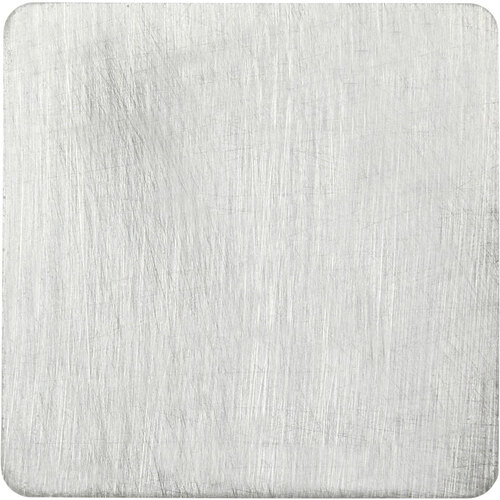

SEC 422 TN610 Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; SEC 422 TN610 CERMET TN610 × 1/8″ Thickness ; Cermet

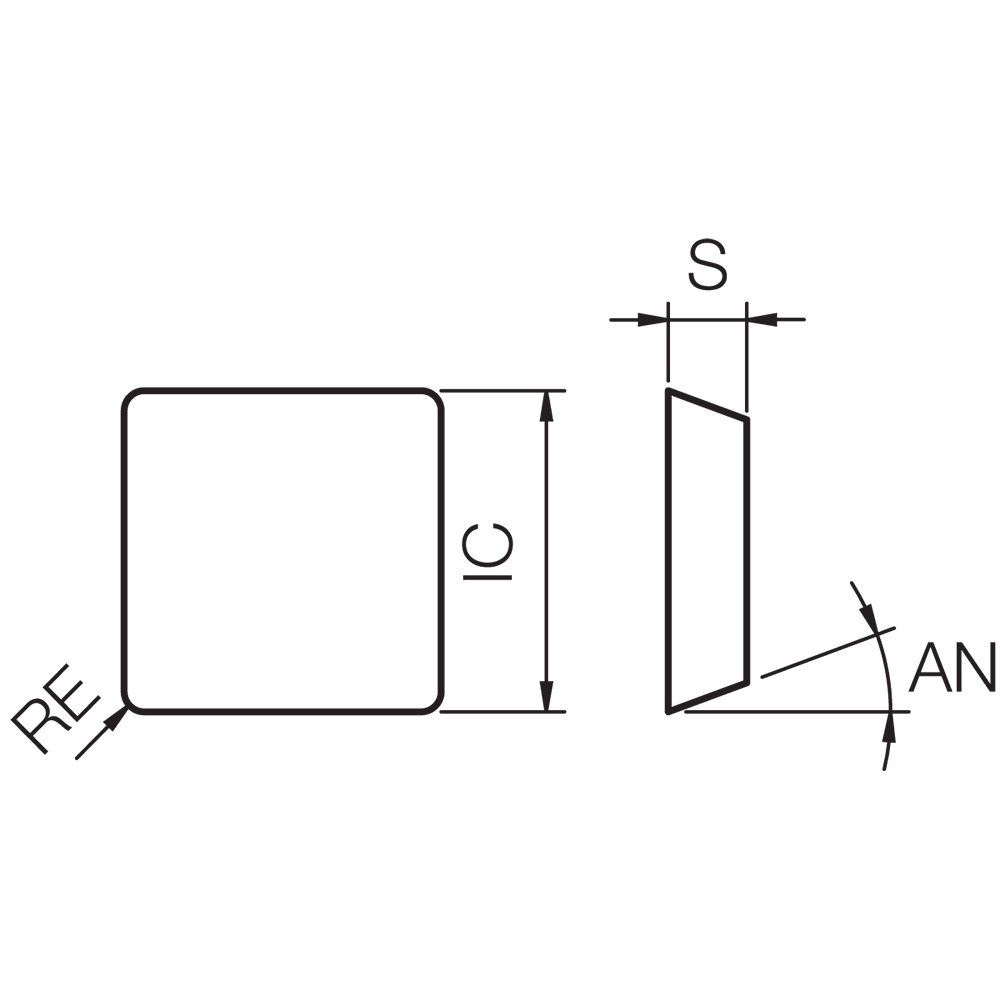

| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Style | SEC |
| Application | Chamfering | Facing | Shouldering | Insert Size | 422 |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 20 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | Cermet |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | Uncoated |
| Grade | TN610 | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.134
Related Documentation
