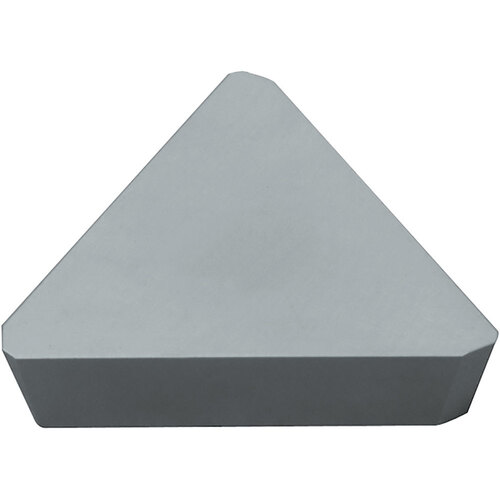

TPC 32P4R TN610 Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; TPC 32P4R TN610 CERMET TN610 × 1/8″ Thickness ; Cermet

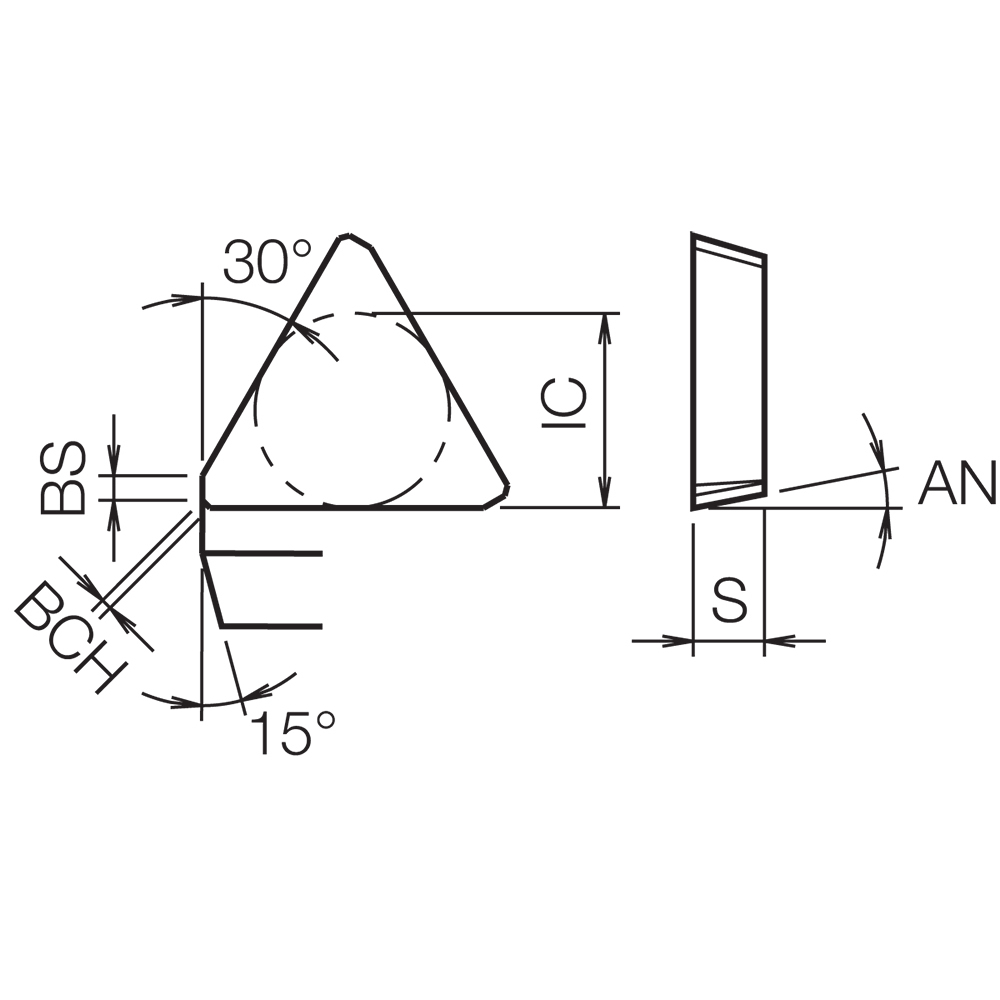

| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Size | 32 |
| Application | Facing | Shouldering | Slotting | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Corner Chamfer Width (CHW) | 0.026″ |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Wiper Edge Length (BS) | 0.063″ | Series/List # | ISOI |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Material | Cermet |
| Grade | TN610 | Coating Process | Uncoated |
| Shape | Triangle | Number of Cutting Edges | 3 |
| Insert Style | TPC | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.134
