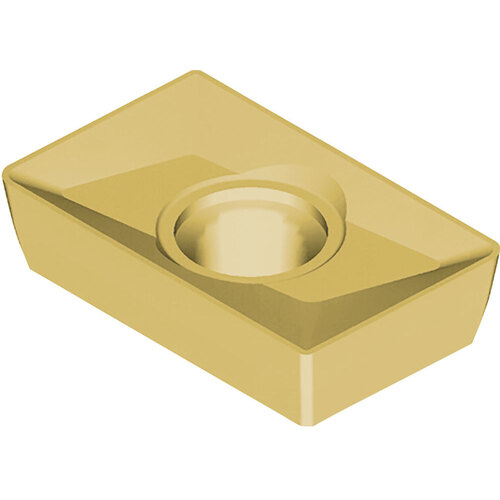

XPMT 15T331 CA6535 Grade CVD Carbide, Indexable Milling Insert
Milling Insert; XPMT15T331CA6535 CVD CBD CA6535 × 5/32″ Thickness ; Carbide ; TiCl2O3+TiN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Insert Size | 15T331 |

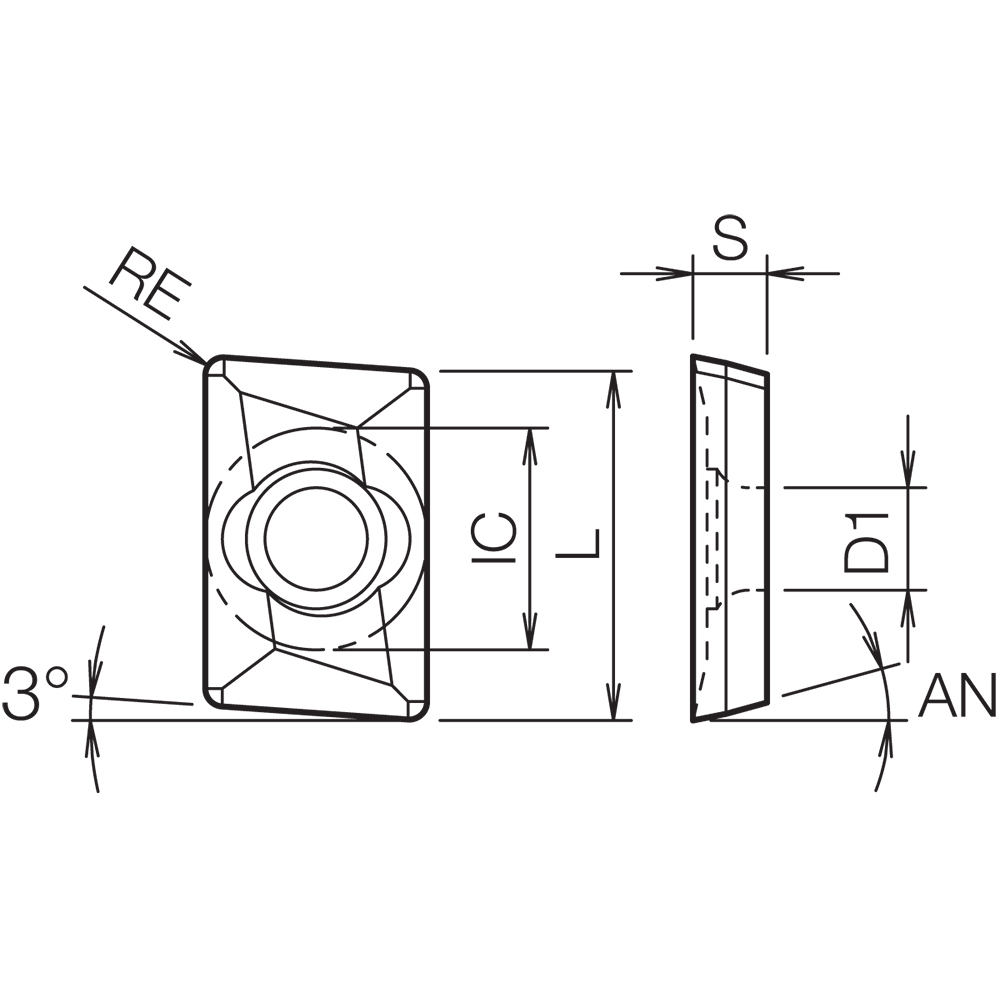

| Application | Chamfering | Countersinking | Facing | Shouldering | Slotting | Clearance Angle Major (AN) | 11 Degrees |
| Insert Length (INSL) | 0.6071″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.122″ | Series/List # | OTMM |
| Inscribed Circle Diameter (IC) | 3/8″ | Hole Diameter | 0.1575″ |
| Insert Thickness (S) | 5/32″ | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | | Coating Process | CVD |
| Grade | CA6535 | Number of Cutting Edges | 2 |
| Shape | Parallelogram | Measurement Type | Inch |
| Insert Style | XPMT |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.250
