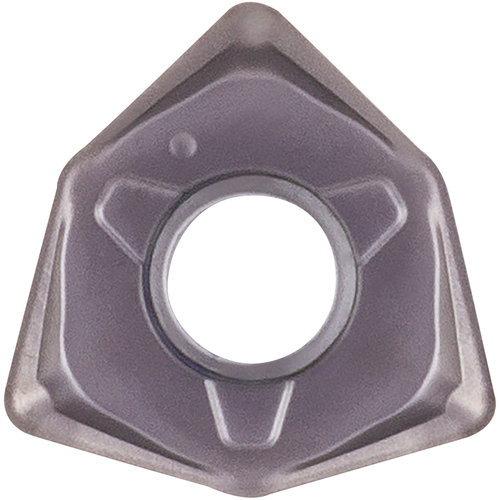

WNMU 050408ENGH PR1525 Grade PVD Carbide, Indexable Milling Insert
Milling Insert; WNMU050408ENGHPR1525 PVD PR1525 × 0.165″ Thickness ; Carbide ; MEGACOAT NANO
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Insert Style | WNMU |
| Application | Facing | Shouldering | Slotting | Insert Size | 50408 |
| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.346″ | Chip Breaker Type | EN-GH |
| Insert Thickness (S) | 0.165″ | Series/List # | MFWN |
| Wiper Edge Length (BS) | 0.0276″ | Hole Diameter | 0.1339″ |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT NANO | Coating Process | PVD |
| Grade | PR1525 | Number of Cutting Edges | 6 |
| Shape | 80° Trigon | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.096
Related Documentation
