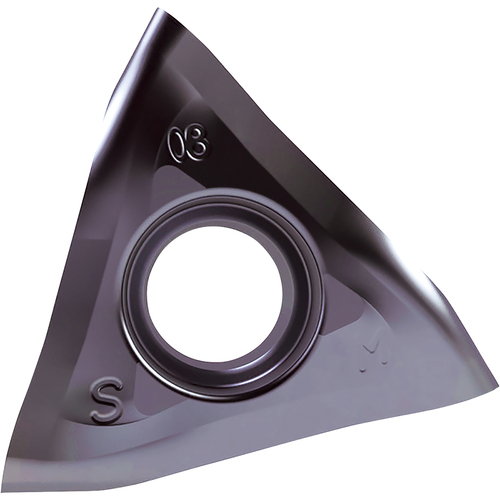

TOMT 060508ERSM PR1525 Grade PVD Carbide, Indexable Milling Insert
Milling Insert; TOMT060508ERSMPR1525 PVD PR1525 × 0.224″ Thickness ; Carbide ; MEGACOAT NANO
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Insert Style | TOMT |
| Application | Contouring | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting | Insert Size | 60508 |

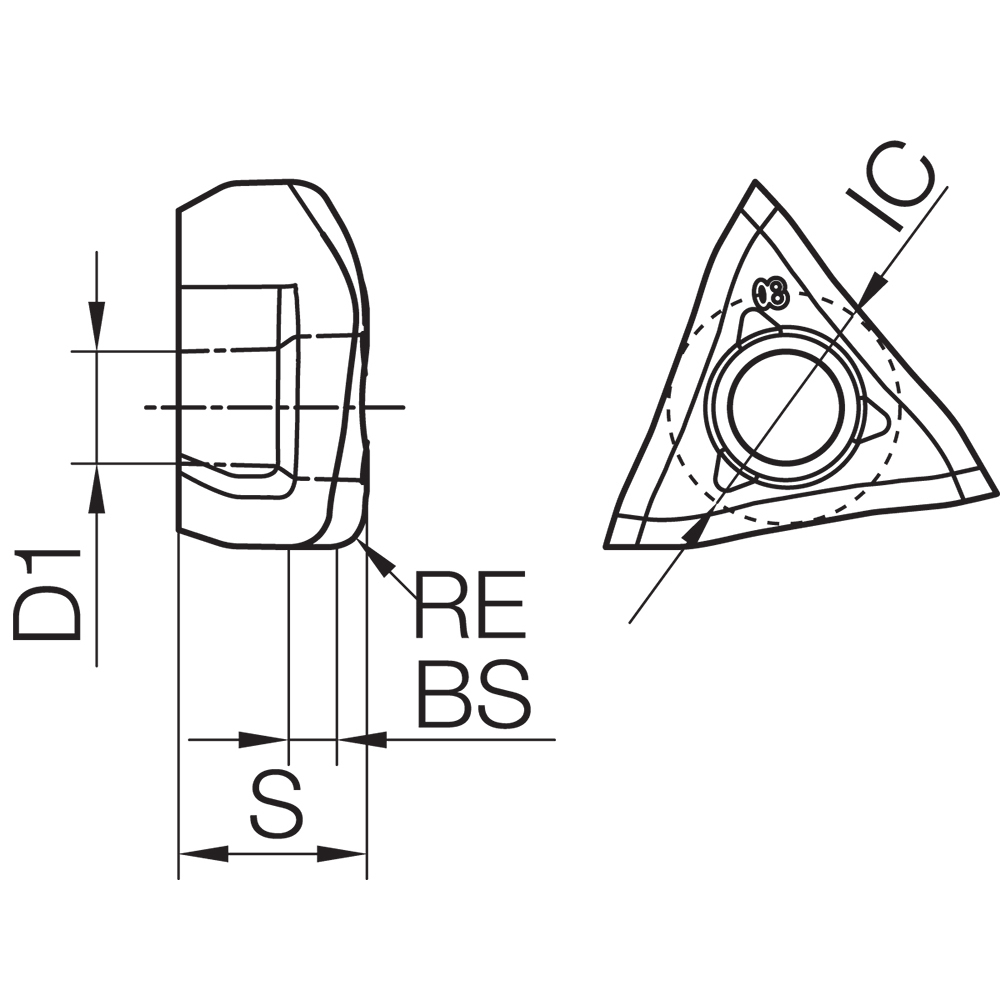

| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.283″ | Chip Breaker Type | ER-SM |
| Insert Thickness (S) | 0.224″ | Series/List # | MEV |
| Wiper Edge Length (BS) | 0.0591″ | Hole Diameter | 0.1339″ |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT NANO | Coating Process | PVD |
| Grade | PR1525 | Number of Cutting Edges | 3 |
| Shape | Triangle | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.102
