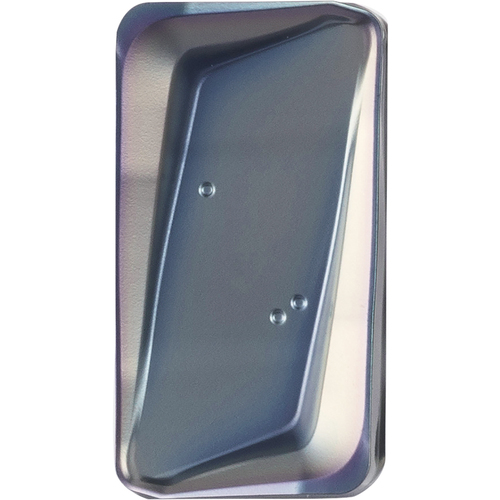

LOGU 221616ERGM PR1525 Grade PVD Carbide, Indexable Milling Insert
Milling Insert; LOGU221616ERGMPR1525 PVD PR1525 × 0.4921″ Width × 0.654″ Thickness ; Carbide ; MEGACOAT NANO
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | | Insert Style | LOGU |
| Application | Facing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting | Insert Size | 2216 |

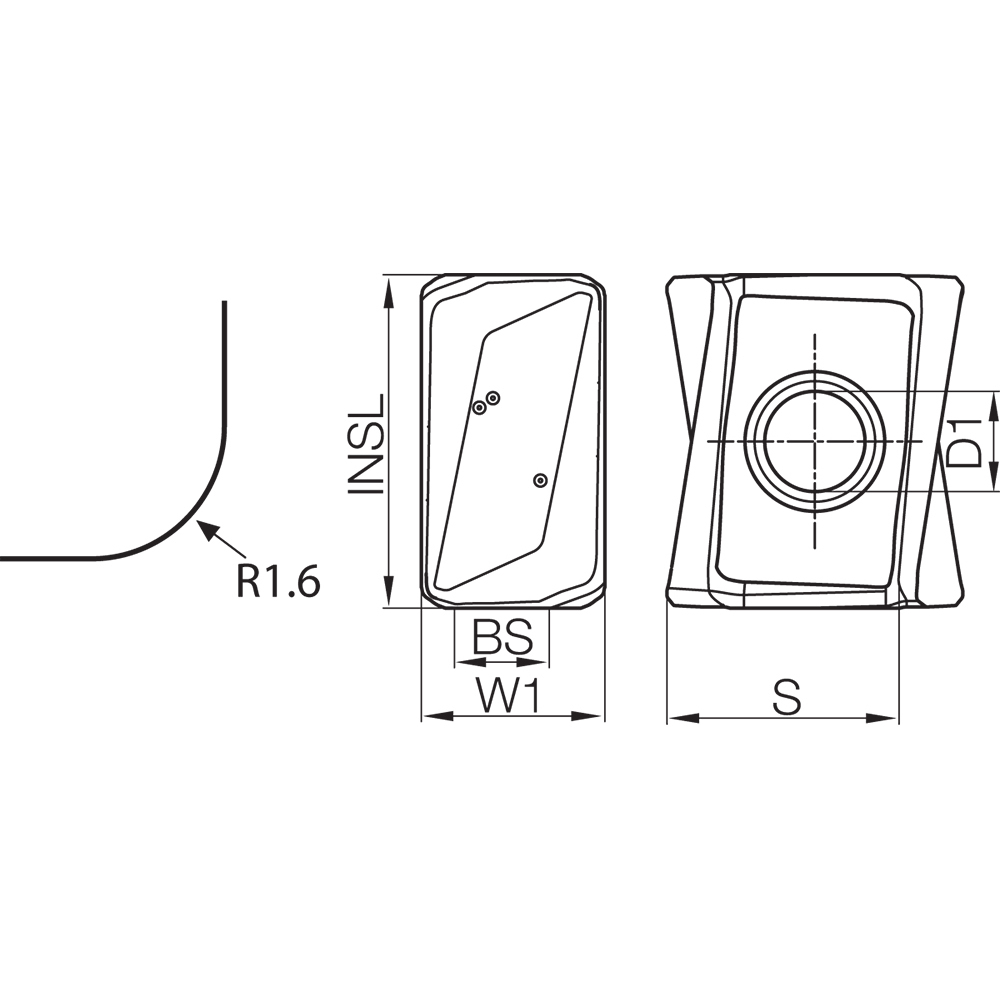

| Insert Length (INSL) | 0.8976″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/16″ | Chip Breaker Type | ER-GM |
| Insert Width (W1) | 0.4921″ | Series/List # | MFLN |
| Insert Thickness (S) | 0.654″ | Hole Diameter | 0.2677″ |
| Wiper Edge Length (BS) | 0.248″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | PVD |
| Coating | MEGACOAT NANO | Number of Cutting Edges | 4 |
| Grade | PR1525 | Measurement Type | Inch |
| Shape | Rectangle |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.142
