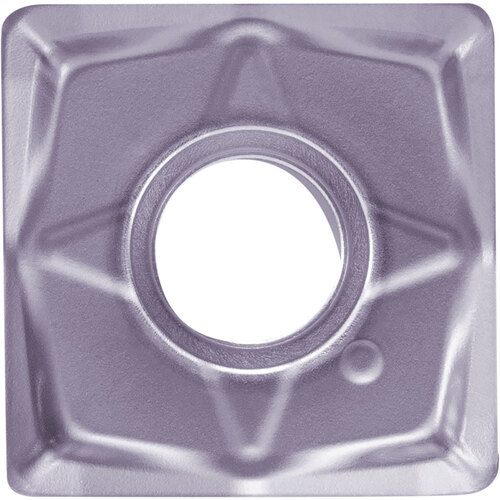

SNMU 130508ENGM PR1525 Grade PVD Carbide, Indexable Milling Insert
Milling Insert; SNMU130508ENGMPR1525 PVD PR1525 × 0.217″ Thickness ; Carbide ; MEGACOAT NANO
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Insert Style | SNMU |
| Application | Facing | Insert Size | 130508 |

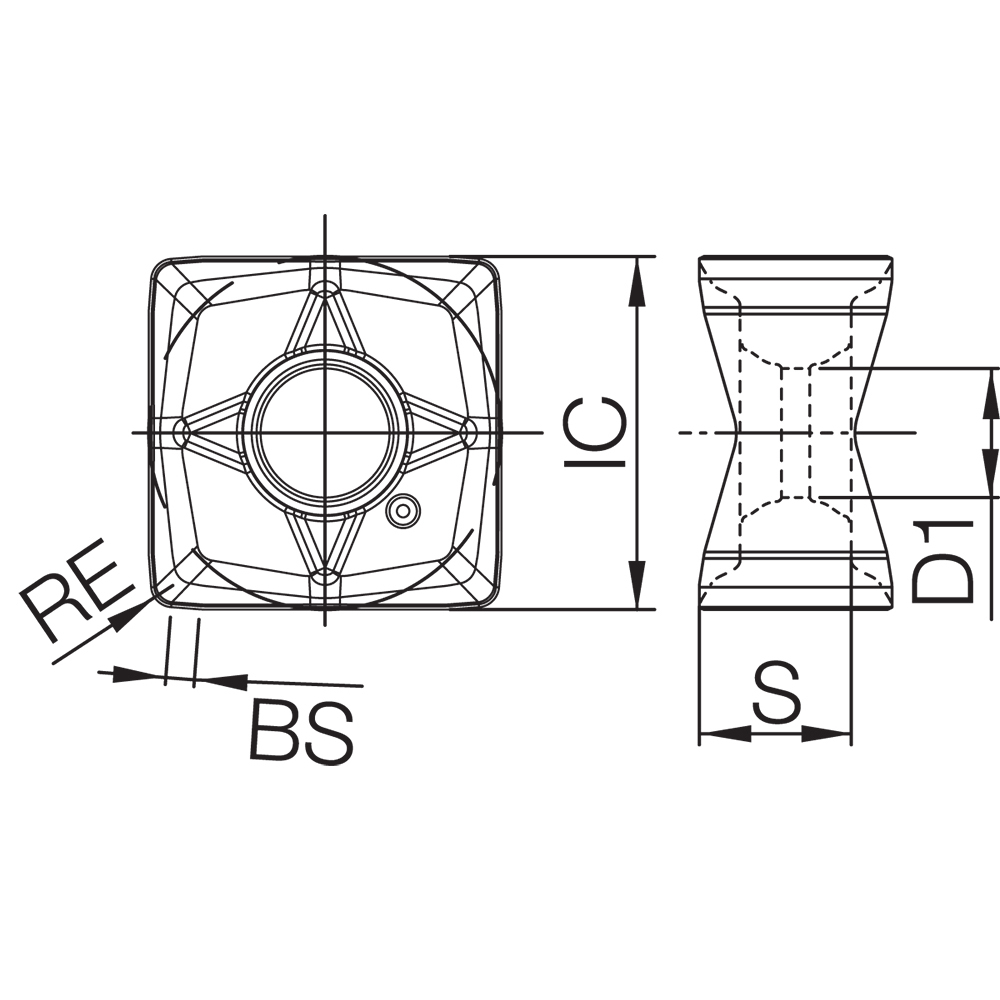

| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.512″ | Chip Breaker Type | EN-GM |
| Insert Thickness (S) | 0.217″ | Series/List # | MFSN |
| Wiper Edge Length (BS) | 0.0394″ | Hole Diameter | 0.185″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT NANO | Coating Process | PVD |
| Grade | PR1525 | Number of Cutting Edges | 8 |
| Shape | Square | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.241
