SDKN 42AUTN PR1225 Grade PVD Carbide, Indexable Milling Insert
Milling Insert; SDKN42AUTNPR1225 PVD CBD PR1225 × 1/2″ Width × 1/8″ Thickness ; Carbide ; MEGACOAT

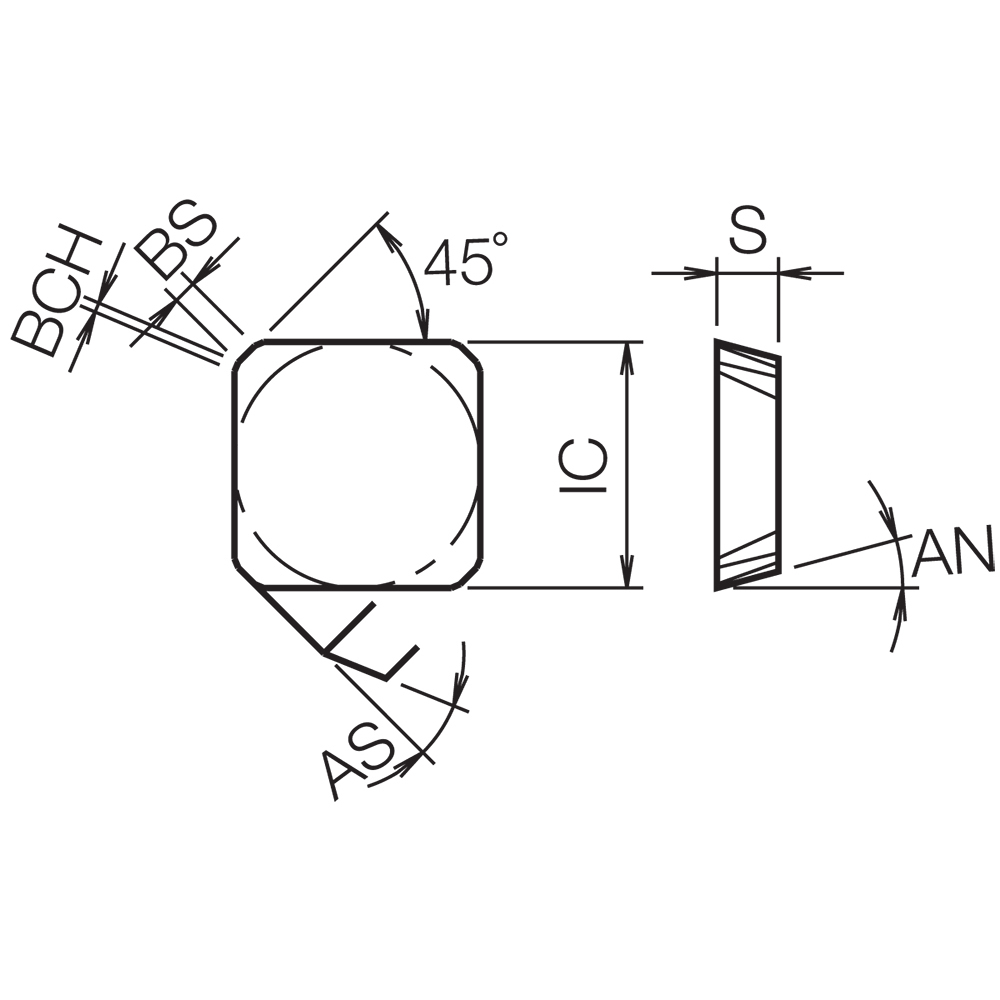

| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Insert Size | 42 |
| Application | Chamfering | Facing | Shouldering | Clearance Angle Major (AN) | 15 Degrees |
| Insert Width (W1) | 1/2″ | Corner Chamfer Width (CHW) | 0.0197″ |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | AUTN |
| Wiper Edge Length (BS) | 0.0472″ | Series/List # | GPM |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT | Coating Process | PVD |
| Grade | PR1225 | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SDKN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.166
