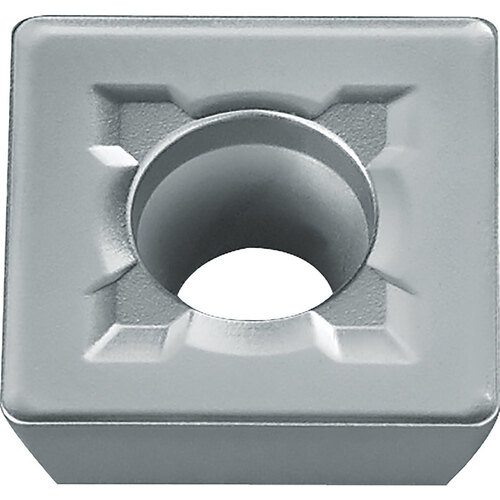

SDMT 080308EK KW10 Grade Uncoated Carbide, Indexable Milling Insert
Milling Insert; SDMT080308EKKW10 CARBIDE KW10 × 0.315″ Width × 1/8″ Thickness ; Carbide ; WC/Co

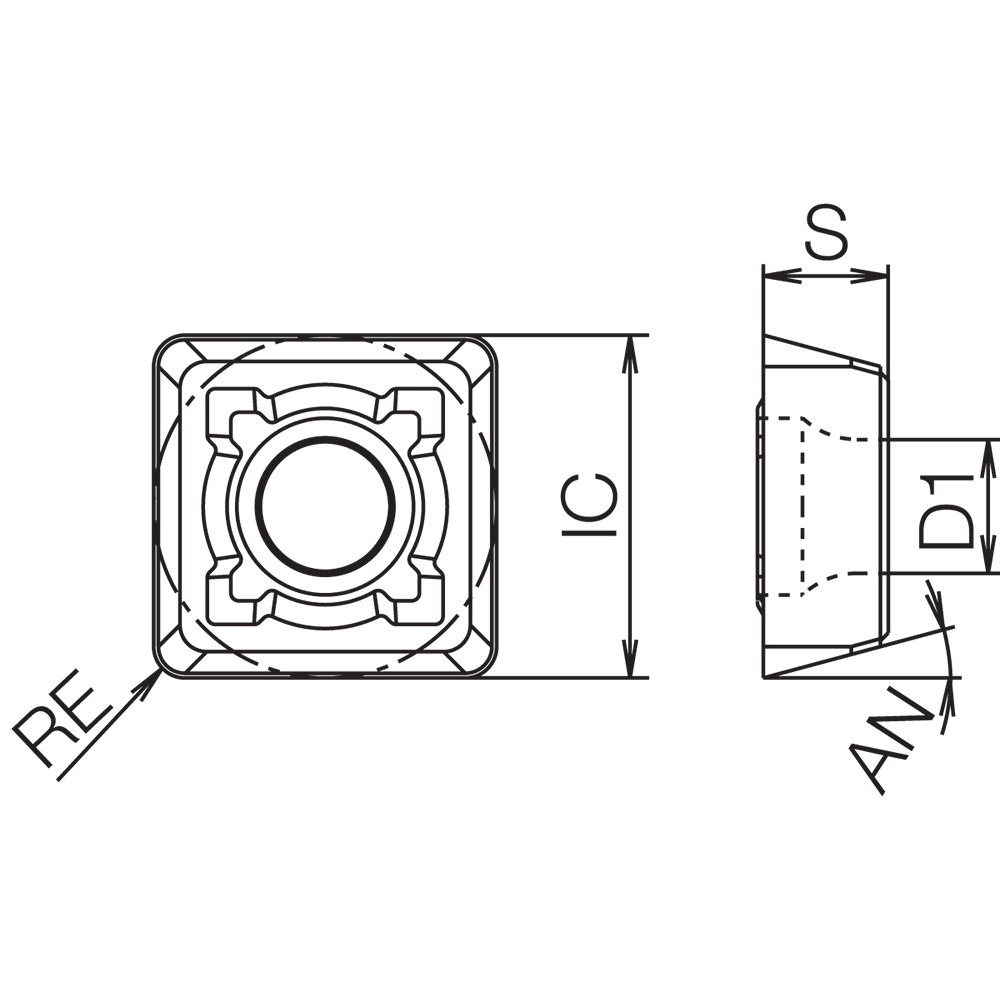

| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Insert Size | 80308 |
| Application | Back Side Milling | T-Slotting | Clearance Angle Major (AN) | 15 Degrees |
| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.315″ | Chip Breaker Type | E-K |
| Inscribed Circle Diameter (IC) | 0.315″ | Series/List # | METS |
| Insert Thickness (S) | 1/8″ | Hole Diameter | 0.1339″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Coating Process | Uncoated |
| Grade | KW10 | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SDMT |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.153
