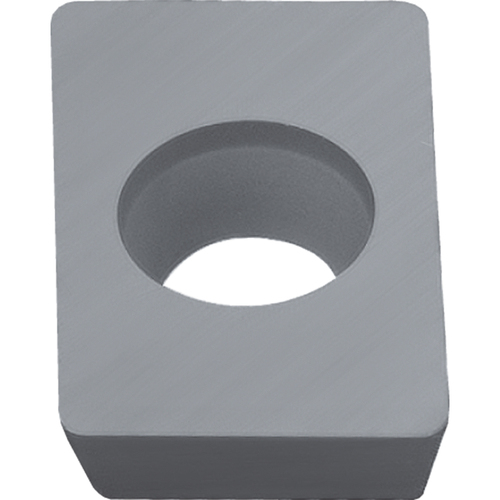

NDCW 322FRX KW10 Grade Uncoated Carbide, Indexable Milling Insert
Milling Insert; NDCW 322FRX KW10 CARBIDE KW10 × 1/8″ Thickness ; Carbide ; WC/Co

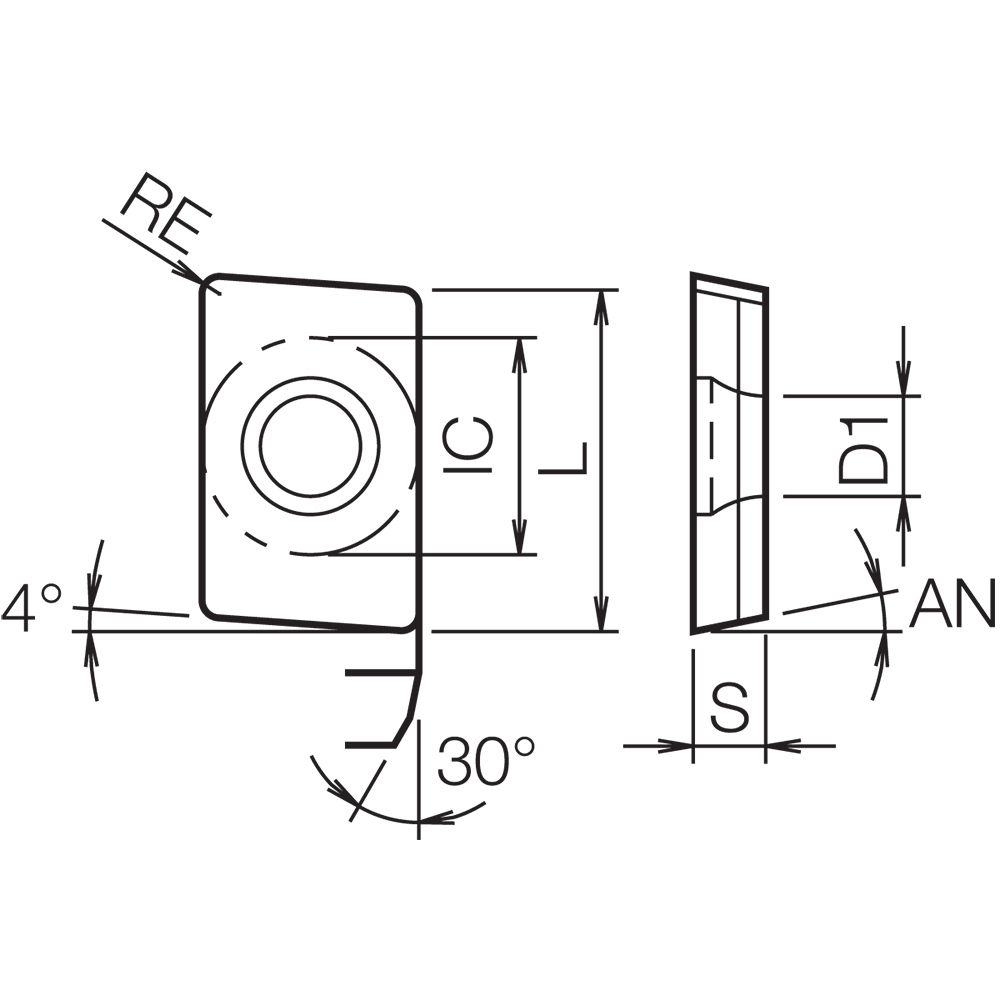

| Applicable Material | | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Clearance Angle Major (AN) | 15 Degrees |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/32″ | Chip Breaker Type | FRX |
| Inscribed Circle Diameter (IC) | 3/8″ | Series/List # | DMC |
| Insert Thickness (S) | 1/8″ | Hole Diameter | 0.1732″ |
| Coating | Uncoated | Cutting Edge Material | Carbide |
| Grade | KW10 | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | NDCW | Measurement Type | Inch |
| Insert Size | 322 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.125
