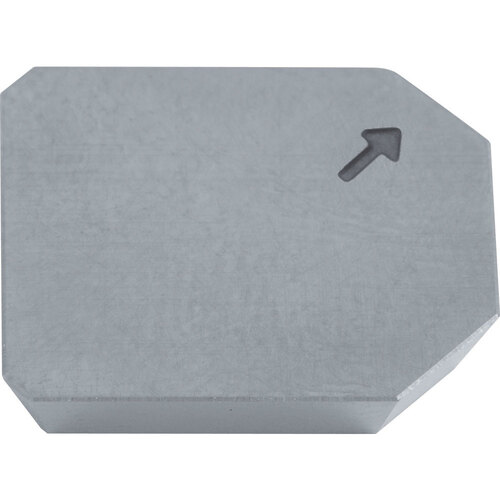

SEEN 42AFFRW KW10 Grade Uncoated Carbide, Indexable Milling Insert
Milling Insert; SEEN 42AFFRW KW10 CARBIDE KW10 × 1/2″ Width × 1/8″ Thickness ; Carbide ; WC/Co

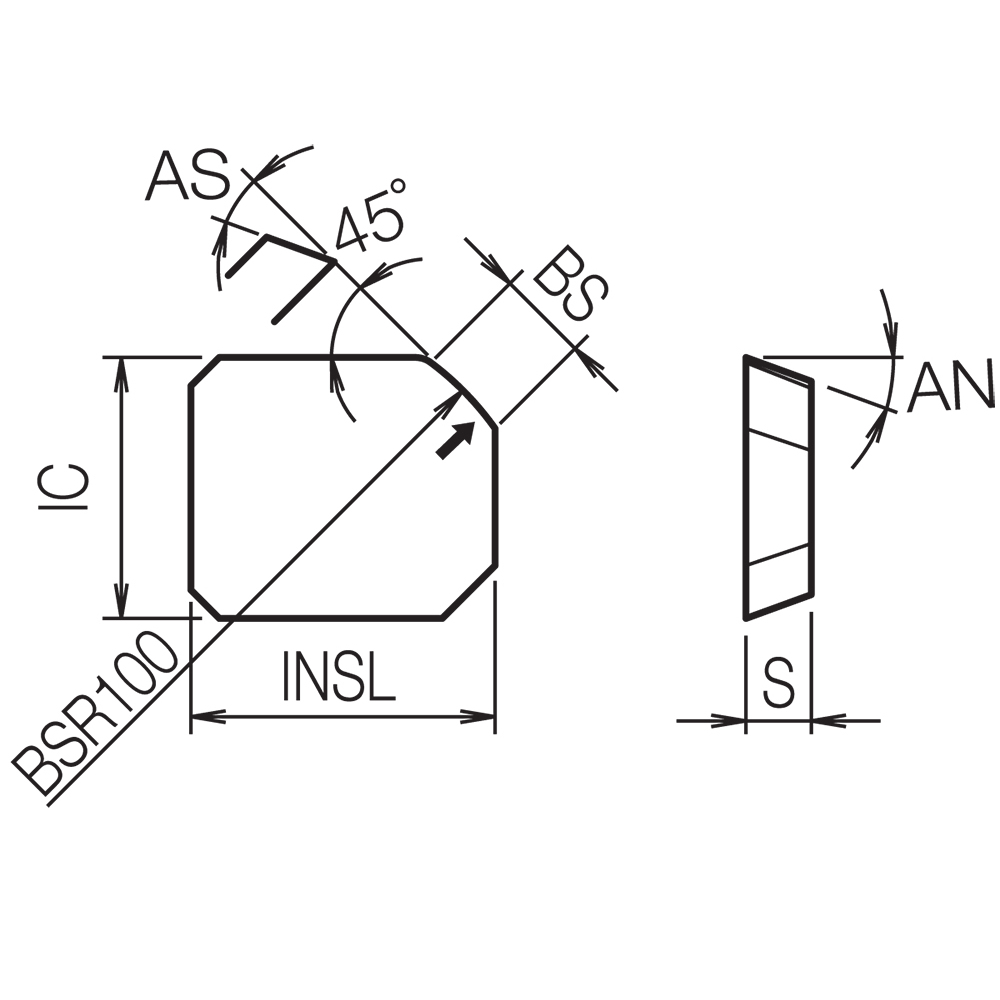

| Applicable Material | | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Style | SEEN |
| Application | Chamfering | Facing | Insert Size | 42 |
| Insert Length (INSL) | 0.5732″ | Clearance Angle Major (AN) | 20 Degrees |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | AFFR-W |
| Insert Thickness (S) | 1/8″ | Series/List # | MSE |
| Wiper Edge Length (BS) | 0.1378″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | Uncoated |
| Coating | Uncoated | Number of Cutting Edges | 1 |
| Grade | KW10 | Measurement Type | Inch |
| Shape | Square |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.103
