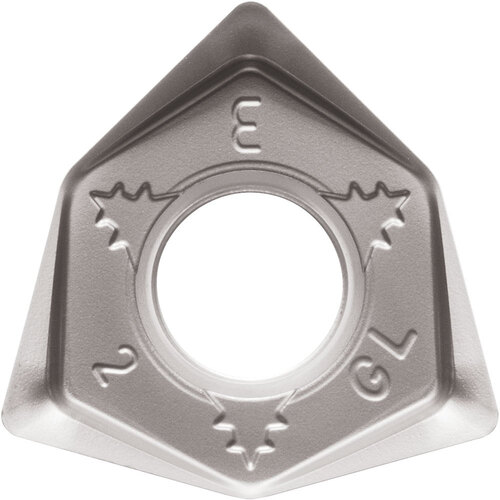

WNEU 080608ENGL TN620M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; WNEU080608ENGLTN620M CERM TN620M × 0.262″ Thickness ; Cermet ; TiCN

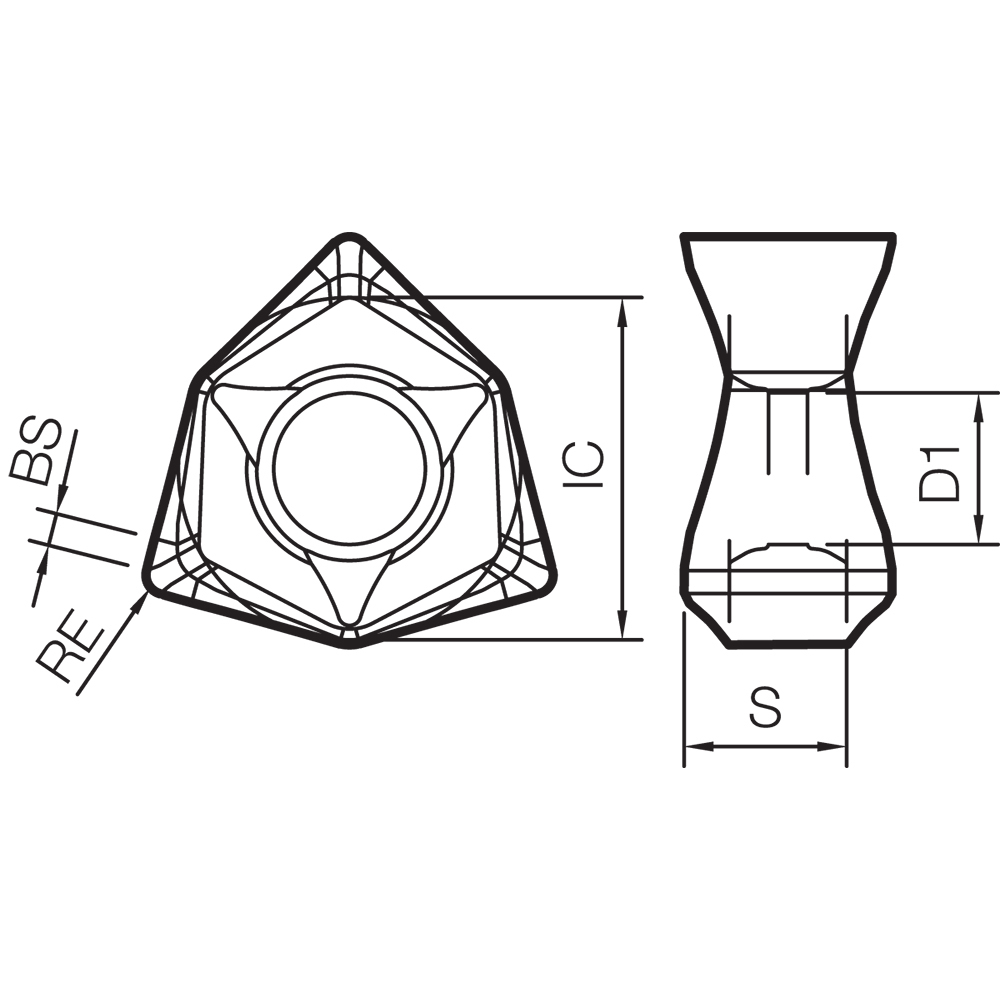

| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Style | WNEU |
| Application | Facing | Shouldering | Slotting | Insert Size | 80608 |
| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.552″ | Chip Breaker Type | EN-GL |
| Insert Thickness (S) | 0.262″ | Series/List # | MFWN |
| Wiper Edge Length (BS) | 0.0591″ | Hole Diameter | 0.2441″ |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Cermet |
| Coating | TiCN | Coating Process | Uncoated |
| Grade | TN620M | Number of Cutting Edges | 6 |
| Shape | 80° Trigon | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.192
