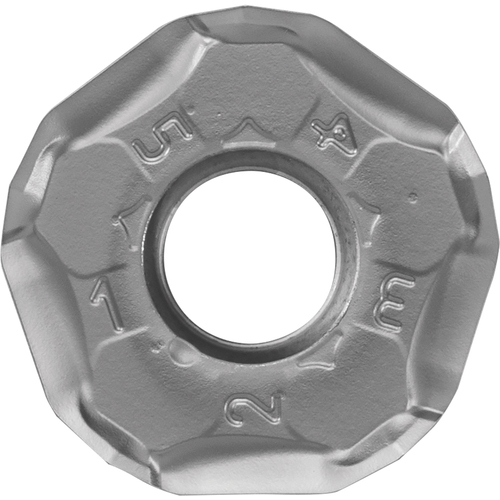

PNEU 1205ANELGL TN620M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; PNEU1205ANELGLTN620M CERM TN620M × 7/32″ Thickness ; Cermet ; TiCN

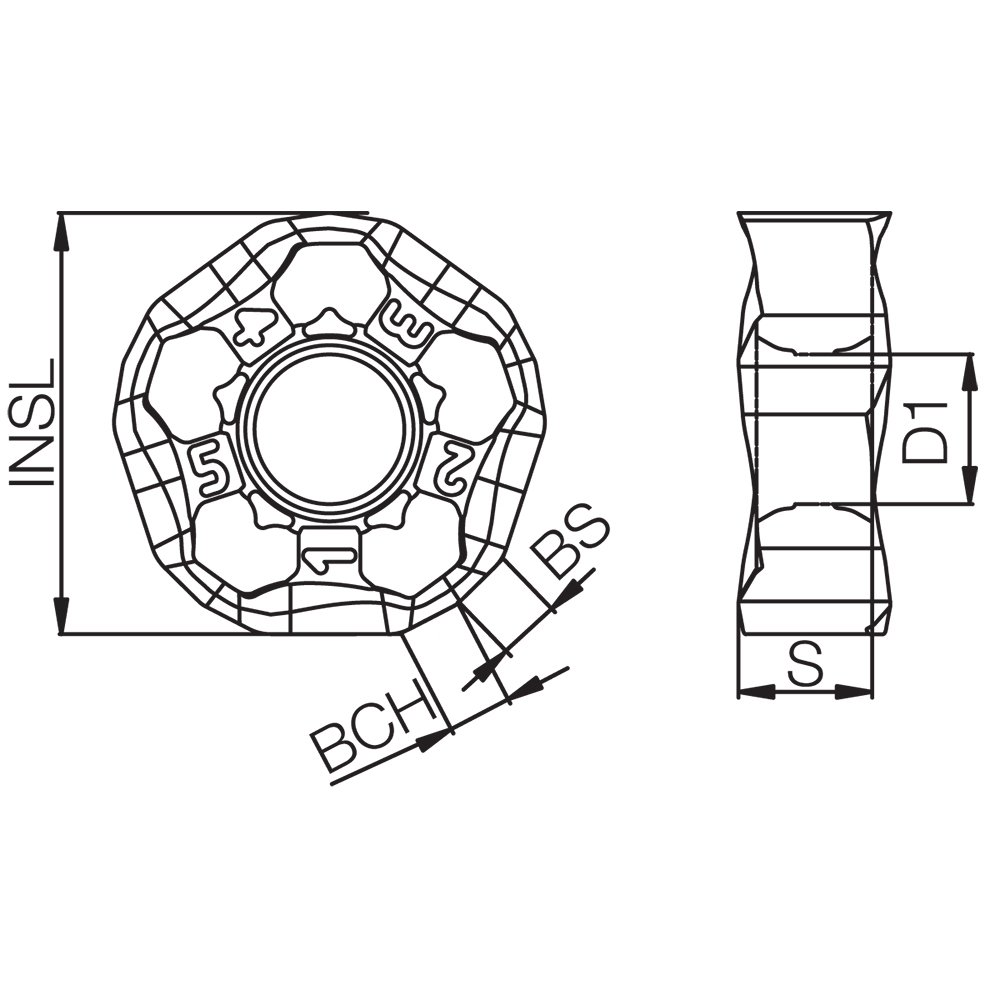

| Applicable Material | | Steel | Super-Alloys / Titanium | | Clearance Angle Major (AN) | 0 Degrees |
| Application | Chamfering | Facing | Corner Chamfer Width (CHW) | 0.1063″ |
| Insert Length (INSL) | 0.6894″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 7/32″ | Chip Breaker Type | ANEL-GL |
| Wiper Edge Length (BS) | 0.1063″ | Series/List # | MFPN |
| Coating | TiCN | Hole Diameter | 0.2441″ |
| Grade | TN620M | Cutting Edge Material | Cermet |
| Shape | Pentagon | Coating Process | Uncoated |
| Insert Style | PNEU | Number of Cutting Edges | 10 |
| Insert Size | 1205 | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.249
