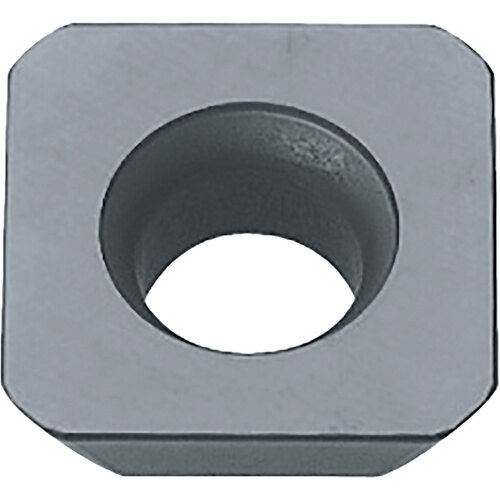

SEKW 43AFTN TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; SEKW 43AFTN TN100M CERMET TN100M × 1/2″ Width × 3/16″ Thickness ; Cermet ; TiCN

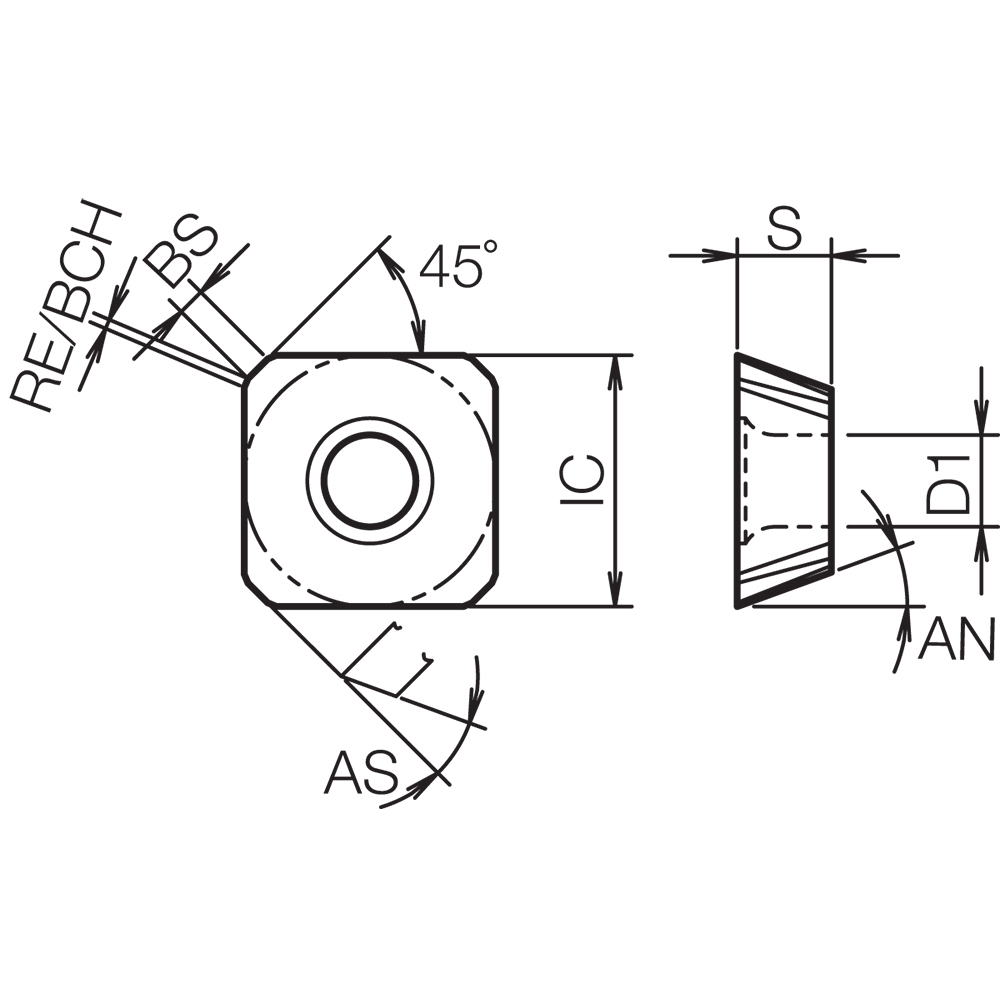

| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Size | 43 |
| Application | Chamfering | Facing | Shouldering | Clearance Angle Major (AN) | 20 Degrees |
| Insert Width (W1) | 1/2″ | Corner Chamfer Width (CHW) | 0.0197″ |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | AFTN |
| Wiper Edge Length (BS) | 0.0669″ | Series/List # | GPM |
| Insert Included Angle (EPSR) | 90 Degrees | Hole Diameter | 0.2165″ |
| Coating | | TiCN | NbC | | Cutting Edge Material | Cermet |
| Grade | TN100M | Coating Process | Uncoated |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SEKW | Measurement Type | Inch |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.092
