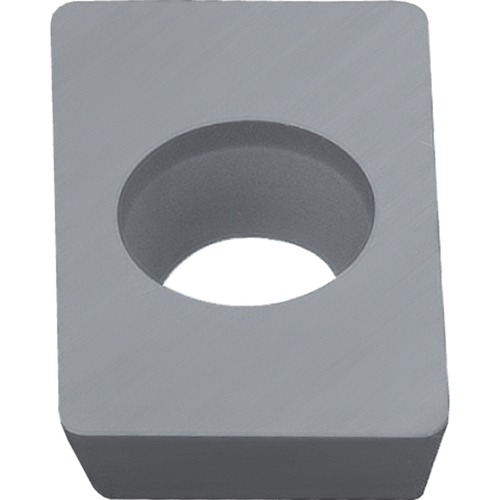

NDCW 321TRX TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; NDCW 321TRX TN100M CERMET TN100M × 1/8″ Thickness ; Cermet ; TiCN

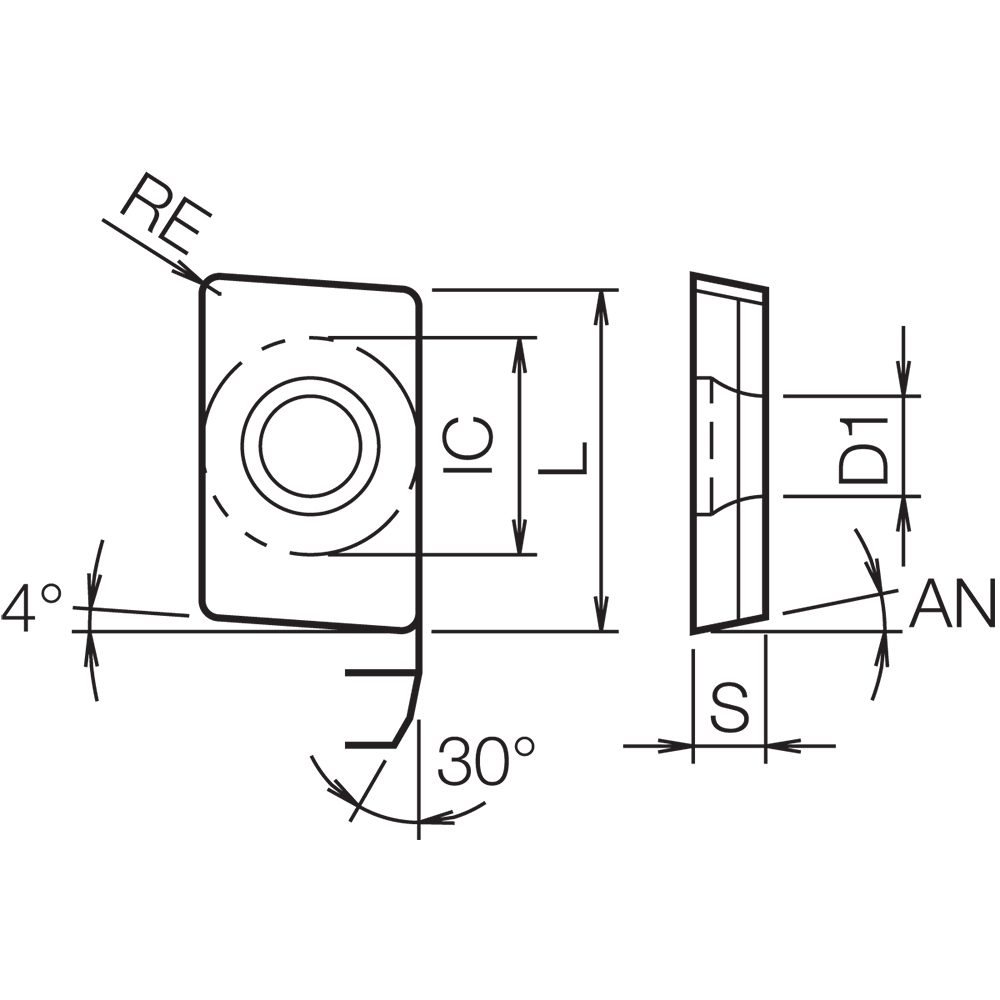

| Applicable Material | | Steel | Super-Alloys / Titanium | | Clearance Angle Major (AN) | 15 Degrees |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/64″ | Chip Breaker Type | TRX |
| Inscribed Circle Diameter (IC) | 3/8″ | Series/List # | DMC |
| Insert Thickness (S) | 1/8″ | Hole Diameter | 0.1732″ |
| Coating | | TiCN | NbC | | Cutting Edge Material | Cermet |
| Grade | TN100M | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | NDCW | Measurement Type | Inch |
| Insert Size | 321 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.105
