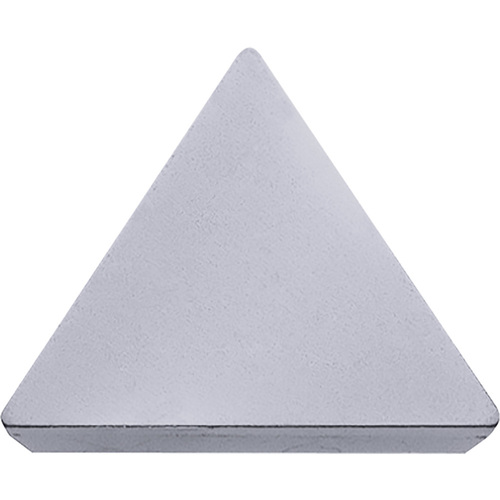

TPM 323 TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; TPM 323 TN100M CERMET TN100M × 1/8″ Thickness ; Cermet ; TiCN
| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Style | TPM |
| Application | Boring | Chamfering | External Turning | Facing | Insert Size | 323 |

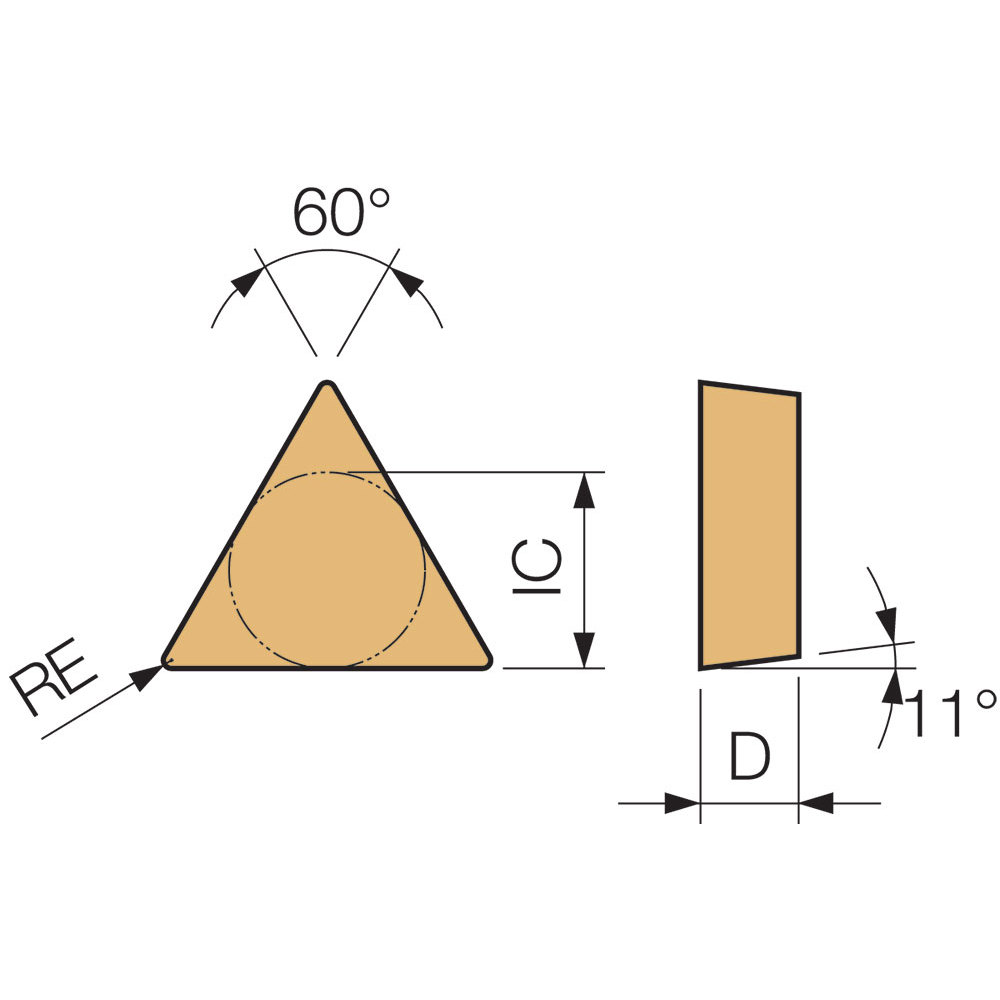

| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Series/List # | GPM |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Coating Process | Uncoated |
| Grade | TN100M | Number of Cutting Edges | 3 |
| Shape | Triangle | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.088
