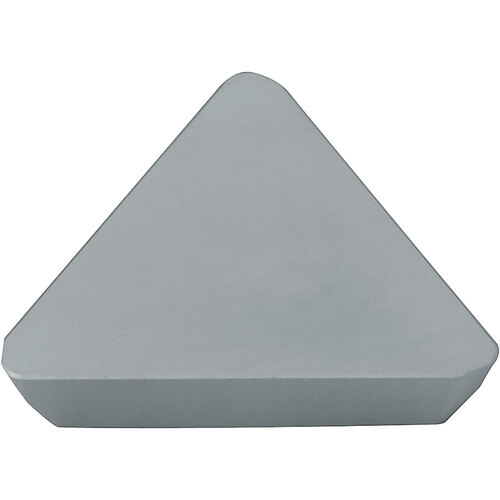

TEKN 32PTTR TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; TEKN 32PTTR TN100M CERMET TN100M × 1/8″ Thickness ; Cermet ; TiCN
| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Style | TEKN |
| Application | Facing | Shouldering | Slotting | Insert Size | 32 |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 20 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | PTTR |
| Wiper Edge Length (BS) | 0.0394″ | Series/List # | MTES |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Coating Process | Uncoated |
| Grade | TN100M | Number of Cutting Edges | 3 |
| Shape | Triangle | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.077
