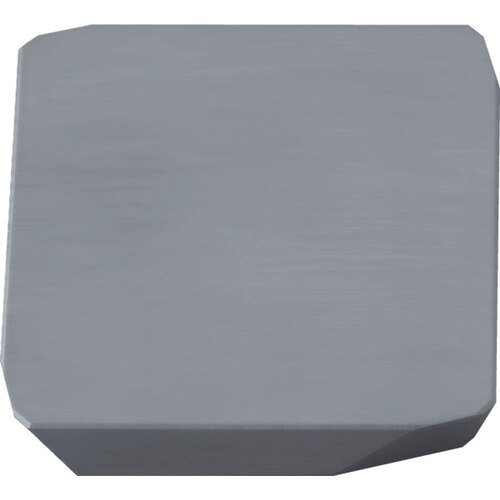

SPCN 63EETR1 TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; SPCN63EETR1TN100M CERMET TN100M × 3/4″ Width × 3/16″ Thickness ; Cermet ; TiCN

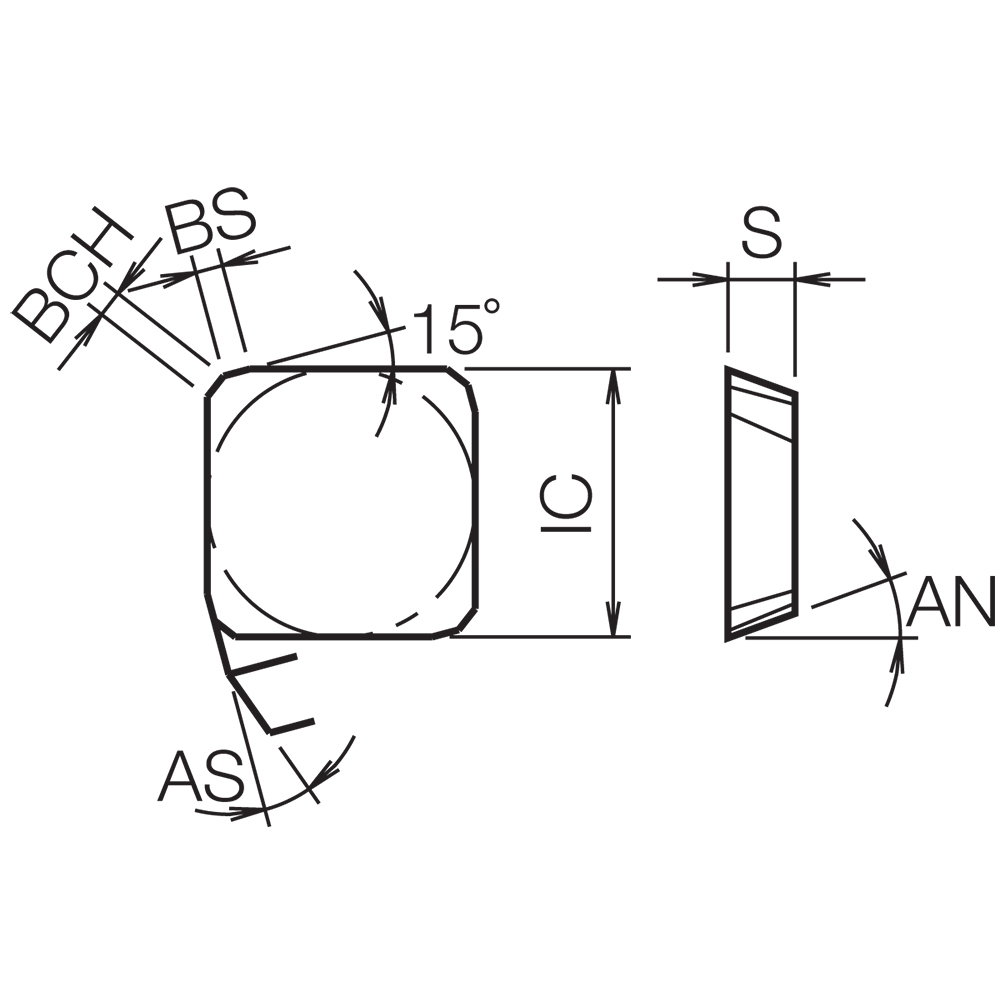

| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Size | 63 |
| Application | Chamfering | Facing | Shouldering | Clearance Angle Major (AN) | 11 Degrees |
| Insert Width (W1) | 3/4″ | Corner Chamfer Width (CHW) | 0.0276″ |
| Inscribed Circle Diameter (IC) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | EETR1 |
| Wiper Edge Length (BS) | 0.0472″ | Series/List # | GPM |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Coating Process | Uncoated |
| Grade | TN100M | Number of Cutting Edges | 1 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SPCN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.091
