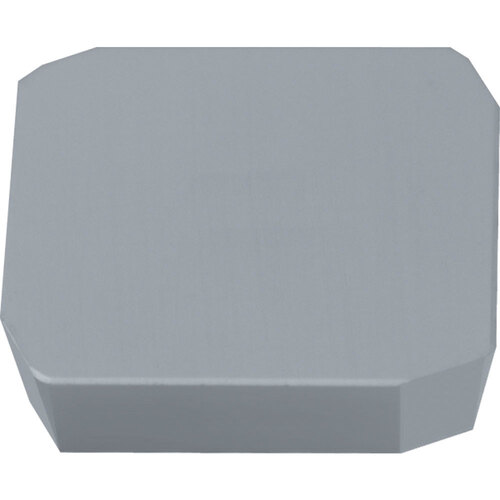

SPCN 42XPTR TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; SPCN 42XPTR TN100M CERMET TN100M × 1/2″ Width × 1/8″ Thickness ; Cermet ; TiCN
| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Style | SPCN |
| Application | Chamfering | Facing | Shouldering | Insert Size | 42 |

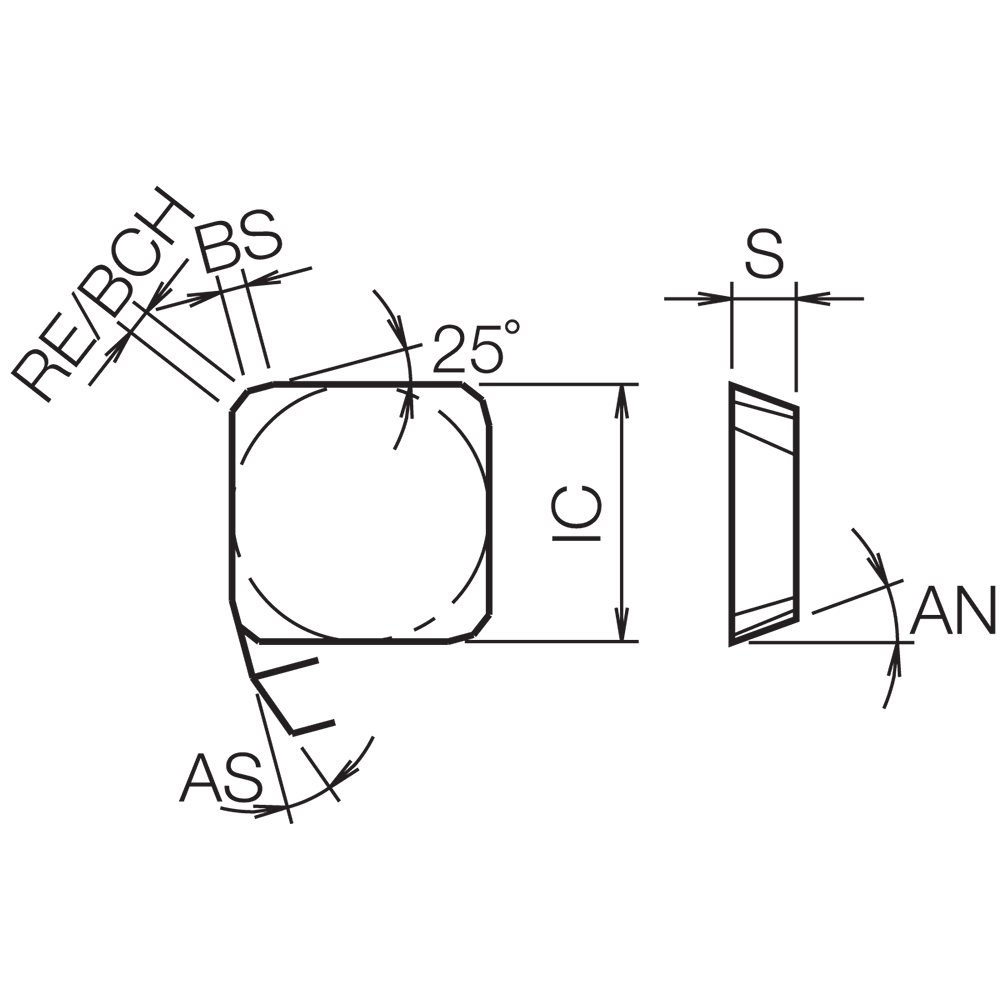

| Corner Radius (RE) | 0.039″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | XPTR |
| Insert Thickness (S) | 1/8″ | Series/List # | GPM |
| Wiper Edge Length (BS) | 0.0787″ | Cutting Edge Material | Cermet |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | Uncoated |
| Coating | | TiCN | NbC | | Number of Cutting Edges | 2 |
| Grade | TN100M | Measurement Type | Inch |
| Shape | Square |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.091
