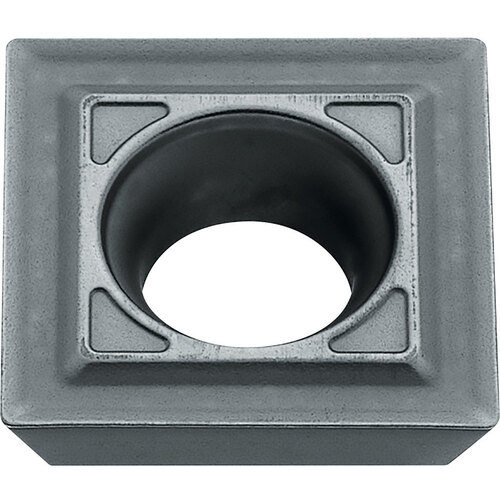

SDMT 3181C TN100M Grade Uncoated Cermet, Indexable Milling Insert
Milling Insert; SDMT 3181C TN100M CERMET TN100M × 3/8″ Width × 0.109″ Thickness ; Cermet ; TiCN
| Applicable Material | | Steel | Super-Alloys / Titanium | | Insert Size | 3181 |

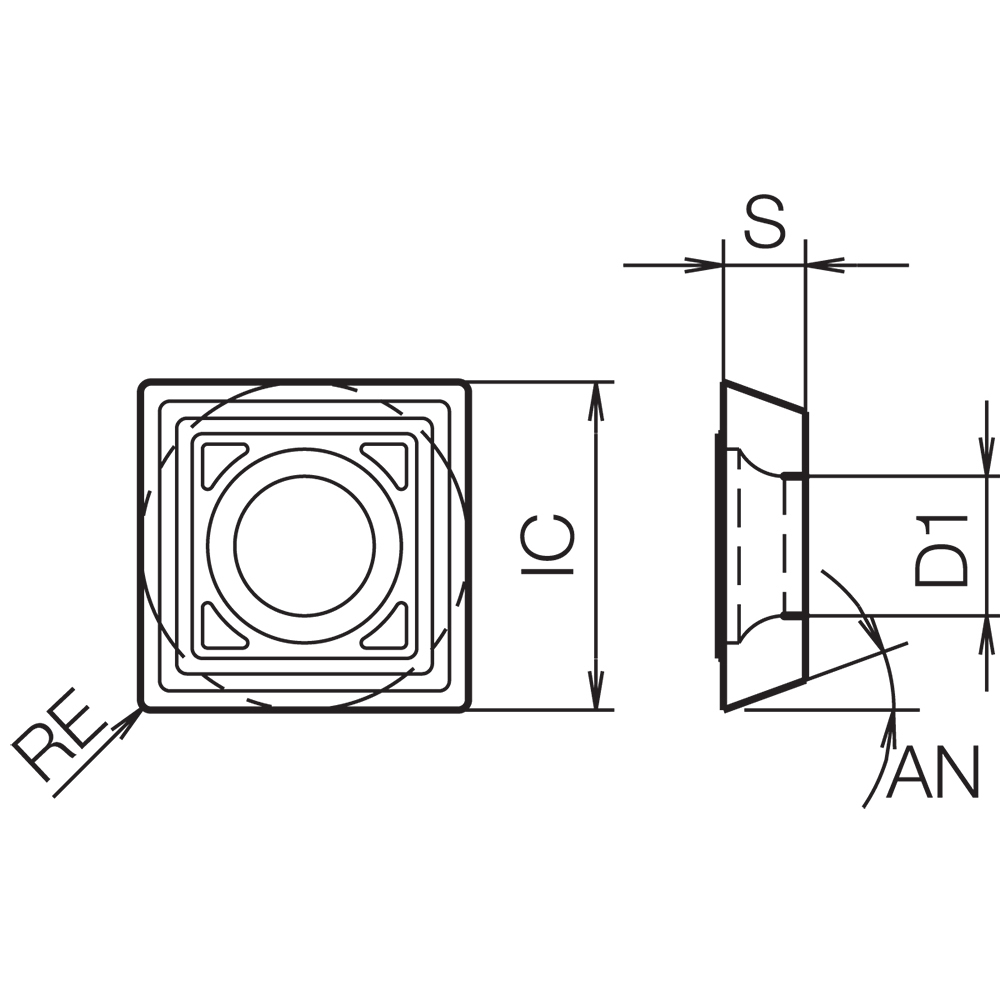

| Application | Back Chamfering | Chamfering | Countersinking | V-Shape Slotting | Clearance Angle Major (AN) | 15 Degrees |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 3/8″ | Chip Breaker Type | C |
| Inscribed Circle Diameter (IC) | 3/8″ | Series/List # | MCSE |
| Insert Thickness (S) | 0.109″ | Hole Diameter | 0.1339″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Coating Process | Uncoated |
| Grade | TN100M | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SDMT |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.052
