SPKN 42EDER CA420M Grade CVD Carbide, Indexable Milling Insert
Milling Insert; SPKN42EDERCA420M CVD CBD CA420M × 1/2″ Width × 1/8″ Thickness ; Carbide ; TiCl2O3+TiN

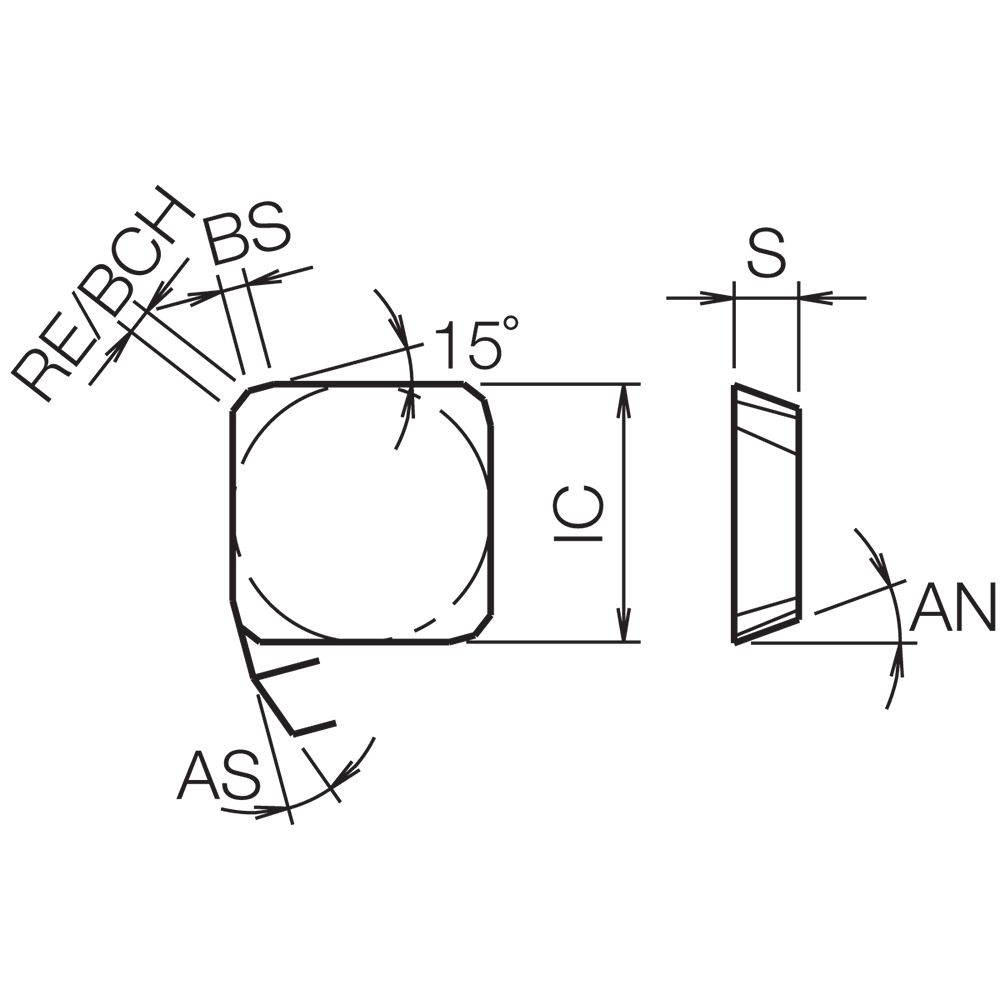

| Applicable Material | | Cast Iron | | Insert Size | 42 |
| Application | Chamfering | Facing | Clearance Angle Major (AN) | 11 Degrees |
| Insert Width (W1) | 1/2″ | Corner Chamfer Width (CHW) | 0.0394″ |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | EDER |
| Wiper Edge Length (BS) | 0.063″ | Series/List # | MSP |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | | Coating Process | CVD |
| Grade | CA420M | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SPKN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.164
