PNEG 1106XNERW CA420M Grade CVD Carbide, Indexable Milling Insert
Milling Insert; PNEG1106XNERWCA420M CVD CA420M × 1/4″ Thickness ; Carbide ; TiCl2O3+TiN

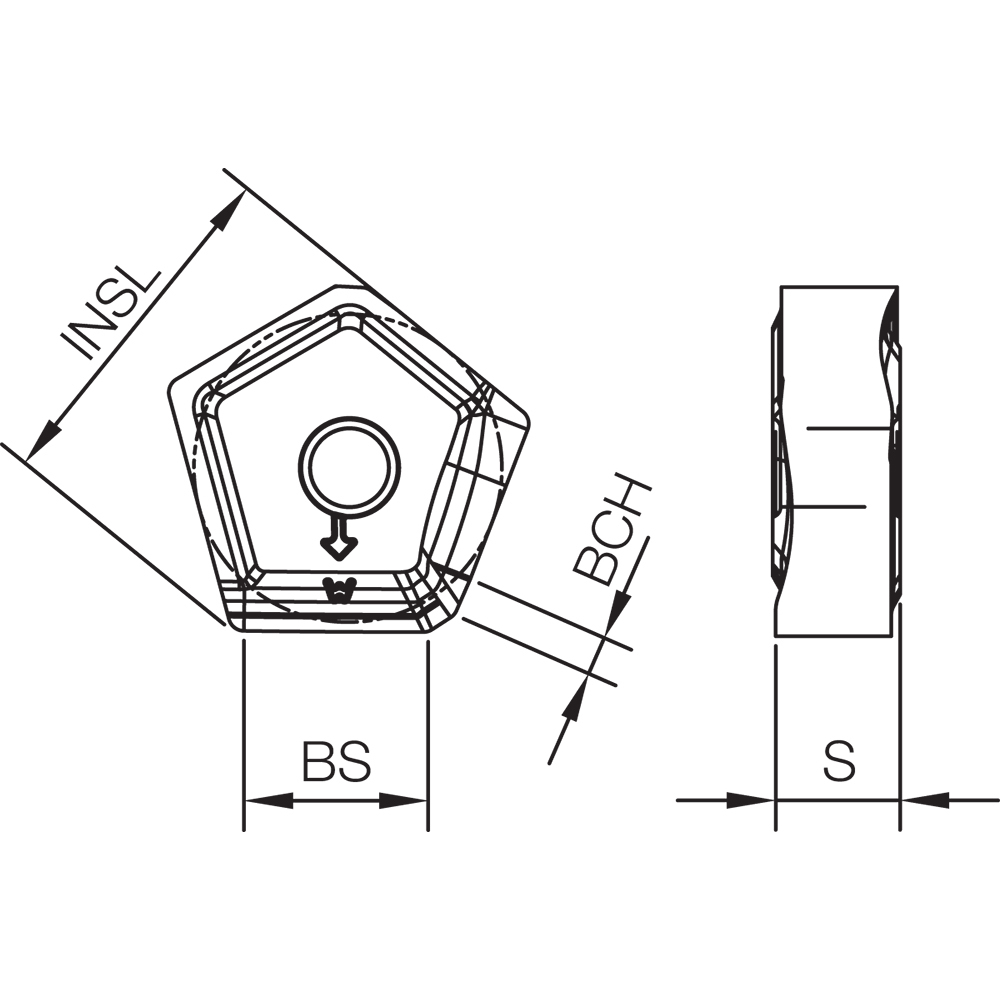

| Applicable Material | | Cast Iron | | Insert Size | 1106 |
| Application | Chamfering | Facing | Corner Chamfer Width (CHW) | 0.0787″ |
| Insert Length (INSL) | 0.7095″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | XNER-W |
| Wiper Edge Length (BS) | 0.3937″ | Series/List # | MFK |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Edge Material | Carbide |
| Grade | CA420M | Coating Process | CVD |
| Shape | Pentagon | Number of Cutting Edges | 2 |
| Insert Style | PNEG | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.485
