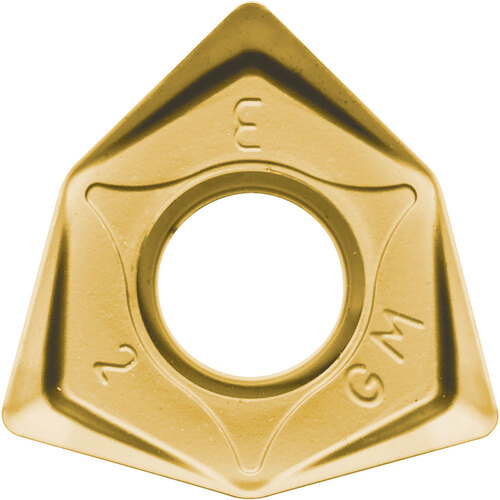

WNMU 080604ENGM CA6535 Grade CVD Carbide, Indexable Milling Insert
Milling Insert; WNMU080604ENGMCA6535 CVD CA6535 × 0.262″ Thickness ; Carbide ; TiCl2O3+TiN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Insert Style | WNMU |
| Application | Facing | Shouldering | Slotting | Insert Size | 80604 |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.552″ | Chip Breaker Type | EN-GM |
| Insert Thickness (S) | 0.262″ | Series/List # | MFWN |
| Wiper Edge Length (BS) | 0.0669″ | Hole Diameter | 0.2441″ |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | | Coating Process | CVD |
| Grade | CA6535 | Number of Cutting Edges | 6 |
| Shape | 80° Trigon | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.320
