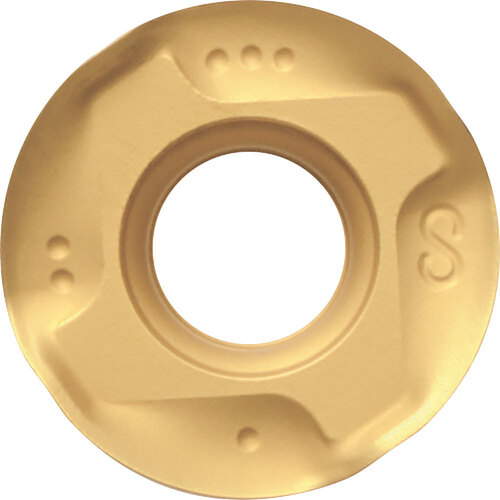

ROMU 1204M0ERSM CA6535 Grade CVD Carbide, Indexable Milling Insert
Milling Insert; ROMU1204M0ERSMCA6535 CVD CA6535 × 0.4724″ Width × 0.187″ Thickness ; Carbide ; TiCl2O3+TiN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Insert Style | ROMU |
| Application | Contouring | Facing | Plunging | Profiling | Shouldering | Insert Size | 1204 |

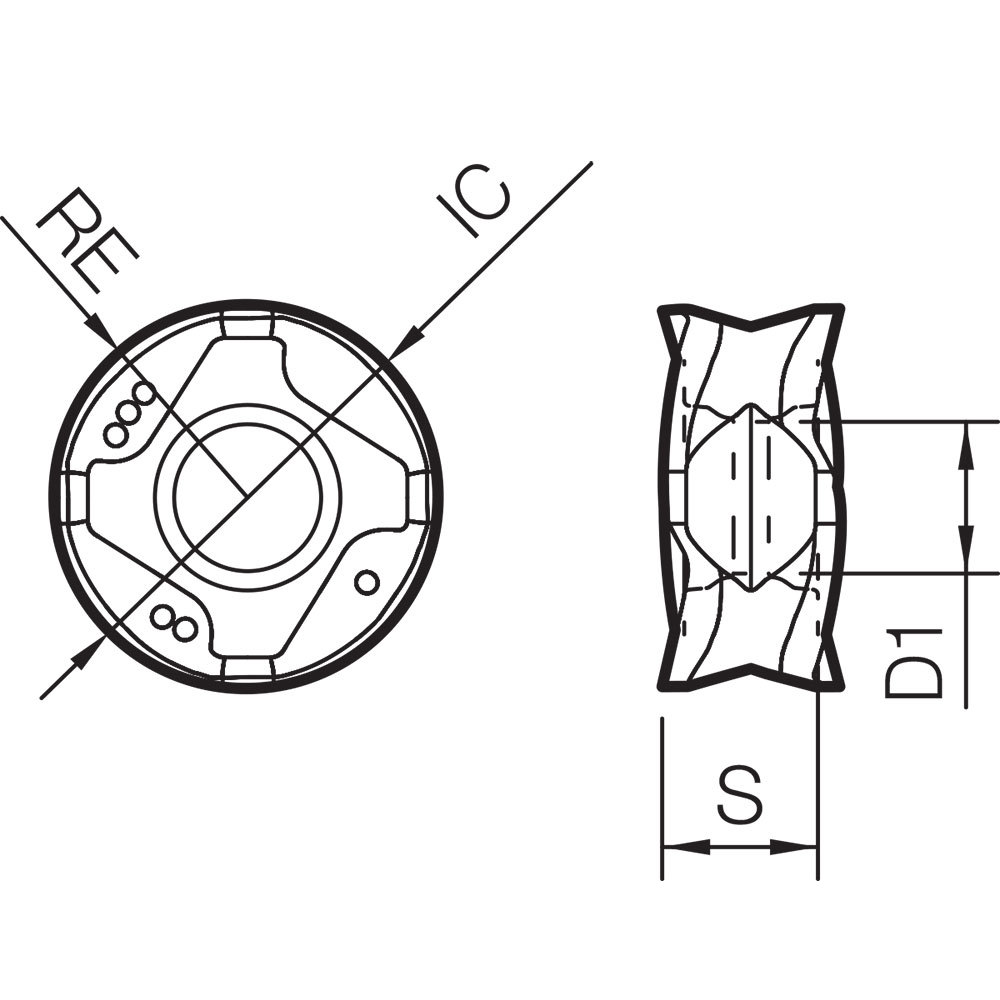

| Insert Length (INSL) | 0.4646″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.4724″ | Chip Breaker Type | M0ER-SM |
| Inscribed Circle Diameter (IC) | 0.472″ | Series/List # | MRW |
| Insert Thickness (S) | 0.187″ | Hole Diameter | 0.1811″ |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Edge Material | Carbide |
| Grade | CA6535 | Coating Process | CVD |
| Shape | Round | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.160
