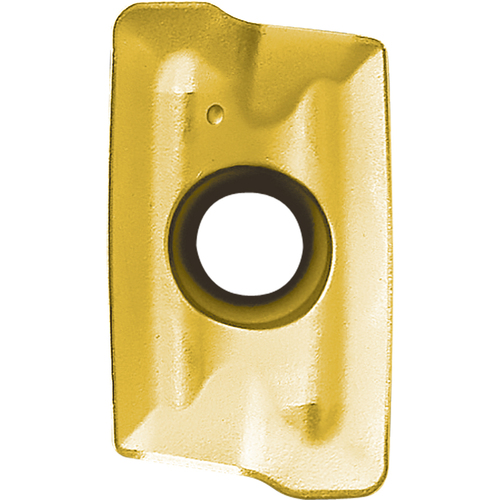

BDMT 170420ERJT CA6535 Grade CVD Carbide, Indexable Milling Insert
Milling Insert; BDMT170420ERJTCA6535 CVD CA6535 × 0.378″ Width × 0.193″ Thickness ; Carbide ; TiCl2O3+TiN

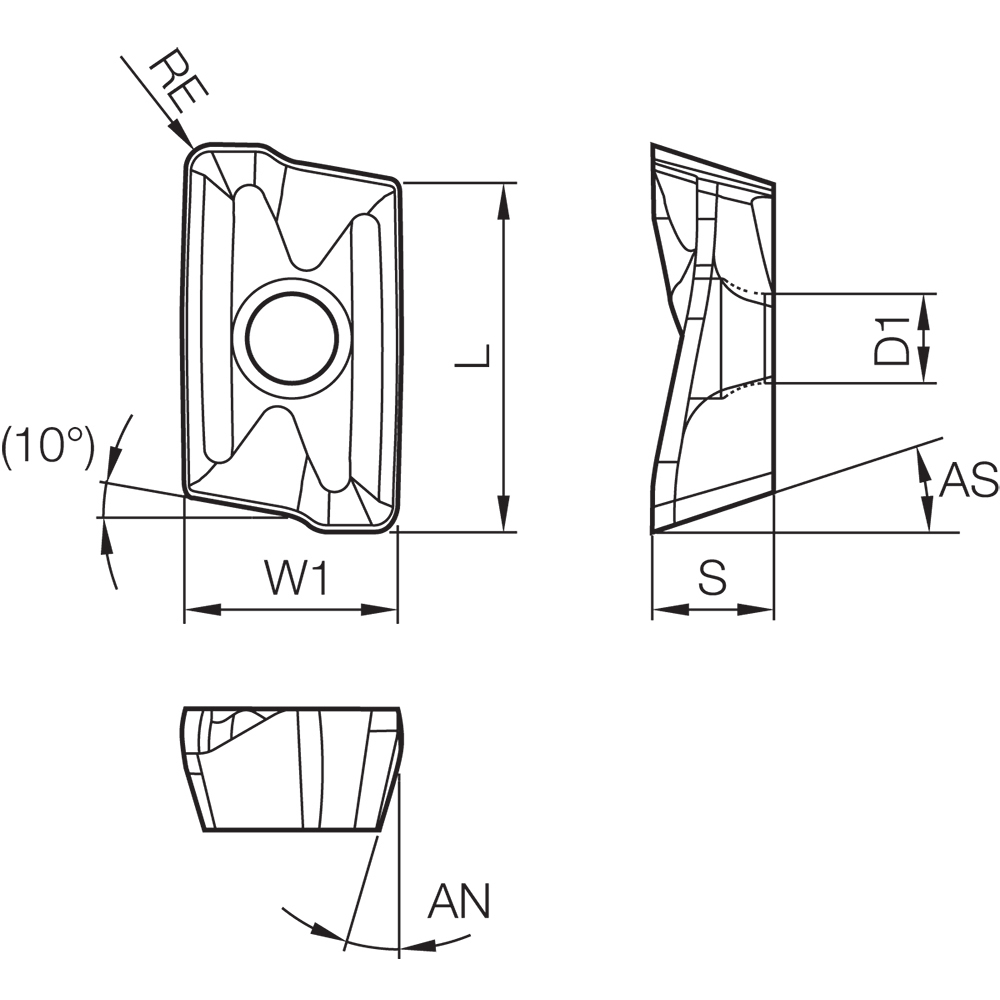

| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Clearance Angle Major (AN) | 18 Degrees |
| Application | Facing | Helical Milling | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 5/64″ | Chip Breaker Type | ER-JT |
| Insert Width (W1) | 0.378″ | Series/List # | MEC |
| Insert Thickness (S) | 0.193″ | Hole Diameter | 0.1732″ |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Edge Material | Carbide |
| Grade | CA6535 | Coating Process | CVD |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | BDMT | Measurement Type | Inch |
| Insert Size | 170420 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.178
