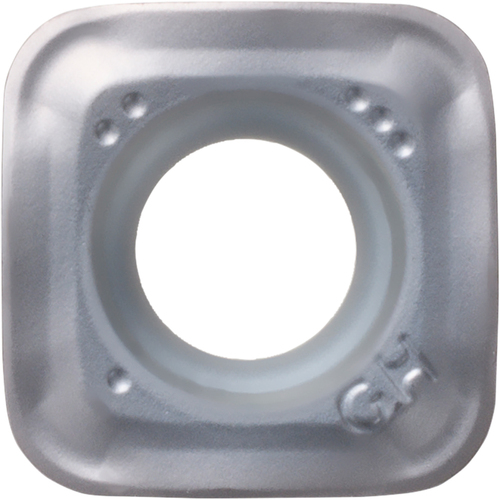

SOMT 100420ERGH PR015S Grade PVD Carbide, Indexable Milling Insert
Milling Insert; SOMT100420ERGHPR015S PVD PR015S × 0.4114″ Width × 0.18″ Thickness ; Carbide ; MEGACOAT HARD
| Applicable Material | | Hard Materials | | Insert Size | 100420 |
| Application | Facing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting | Clearance Angle Major (AN) | 16 Degrees |

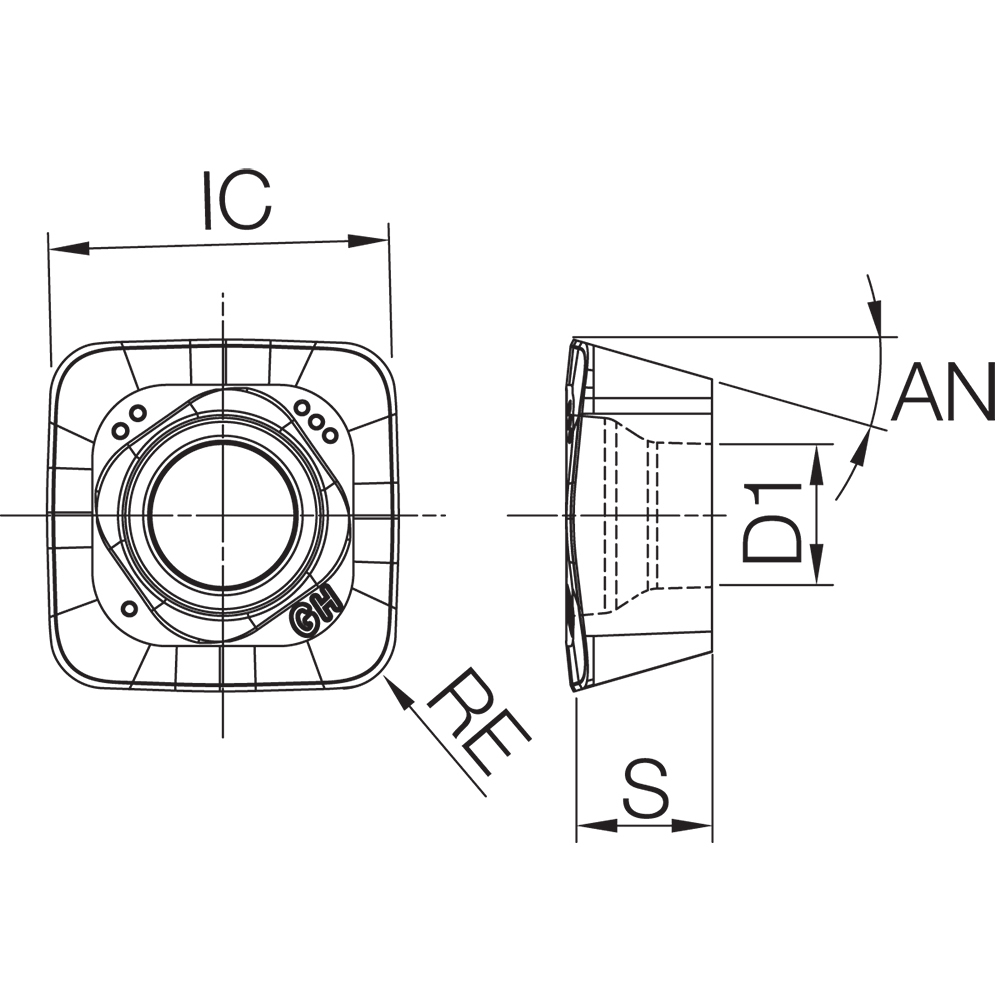

| Corner Radius (RE) | 5/64″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.4114″ | Chip Breaker Type | ER-GH |
| Inscribed Circle Diameter (IC) | 0.411″ | Series/List # | MFHR |
| Insert Thickness (S) | 0.18″ | Hole Diameter | 0.1791″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT HARD | Coating Process | PVD |
| Grade | PR015S | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SOMT |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.113
