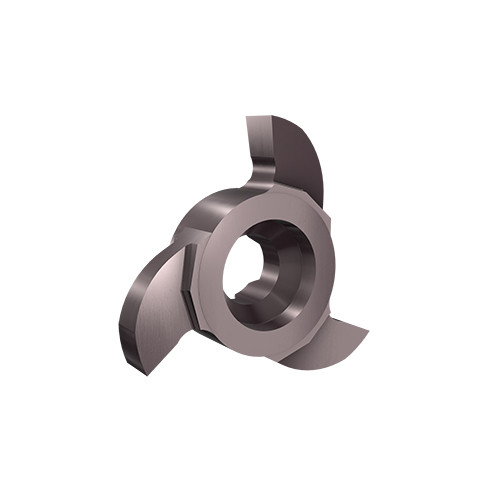

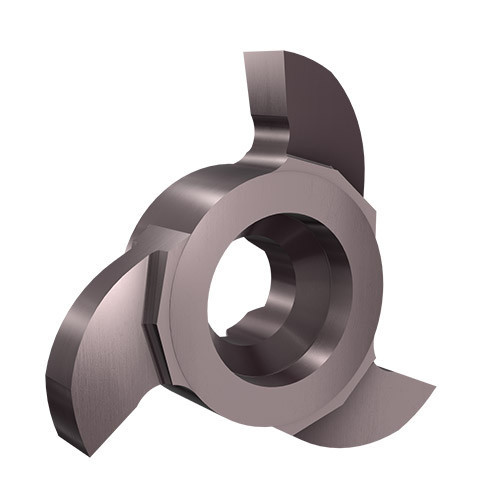

TFMG-187W GP22R
External and Internal Groove Milling Inserts
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Insert Body Diameter (INSBD) | 1 |
| Application | | Int Ext Grooving Milling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.008″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.177″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiN | Measurement Type | Inch |
| Grade | GP22R | Body Material | Carbide |
| Insert Style | TFMG | Cutting Diameter (DC) | 0.854″ |
| Insert Size | 187 |
Product Features
| Family Description | External and Internal Groove Milling Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.001
