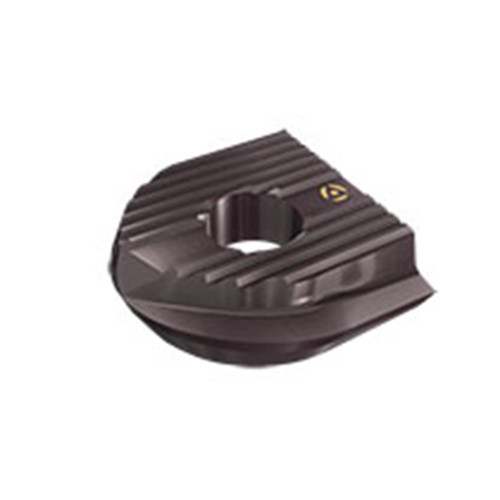

TBNR-812-N ZS26D
Milling Insert; TBNR-812-N INSERT ZS26D ZS26D ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Body Diameter (INSBD) | 0 |
| Application | | Ext Milling Rigid Lock | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |

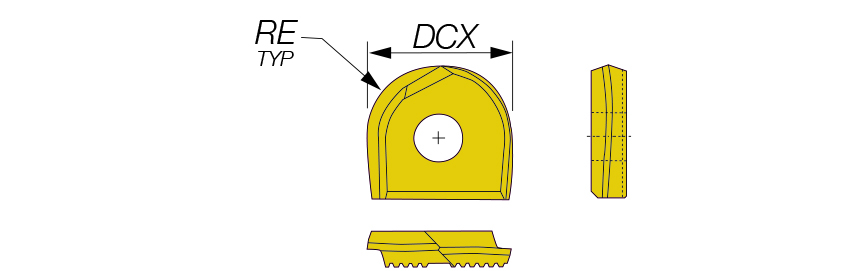

| Corner Radius (RE) | 0.406″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.406″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.196″ | Tool Type | Single sided Inserts |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | ZS26D | Measurement Type | Inch |
| Insert Style | TBNR | Body Material | Carbide |
| Insert Size | 812 | Cutting Diameter (DC) | 0.812″ |
Product Features
| Family Description | RigidLock Ball Nose Style Milling Inserts with Neutral Flute | Country of Origin | USA |
Shipping Info
Package Weight
0.001
