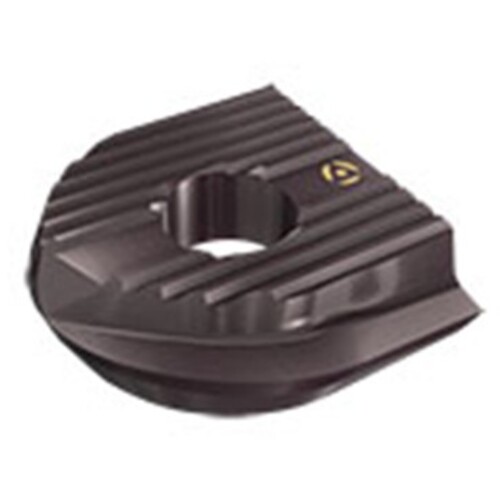

TBNR-500-N CB200
Milling Insert; TBNR-500-N INSERT CB200 CB200
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Insert Size | 500 |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5.2 mm | Tool Type | Single sided Inserts |
| Coating | TiCN | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | CB200 | Measurement Type | Inch |
| Shape | Round | Body Material | Carbide |
| Insert Style | TBNR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0
