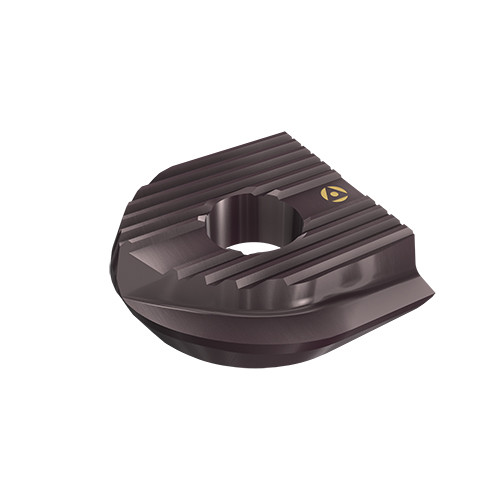

TBNR-1500-P C26S
Milling Insert; TBNR-1500-P INSERT C26S C26S ; Carbide ; Uncoated
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Body Diameter (INSBD) | 2 |
| Application | | Ext Milling Rigid Lock | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3/4″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.312″ | Tool Type | Single sided Inserts |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | C26S | Measurement Type | Inch |
| Insert Style | TBNR | Body Material | Carbide |
| Insert Size | 1500 | Cutting Diameter (DC) | 1-1/2″ |
Product Features
| Family Description | RigidLock Ball Nose Style Milling Inserts with Positive Flute | Country of Origin | USA |
Shipping Info
Package Weight
0.003
