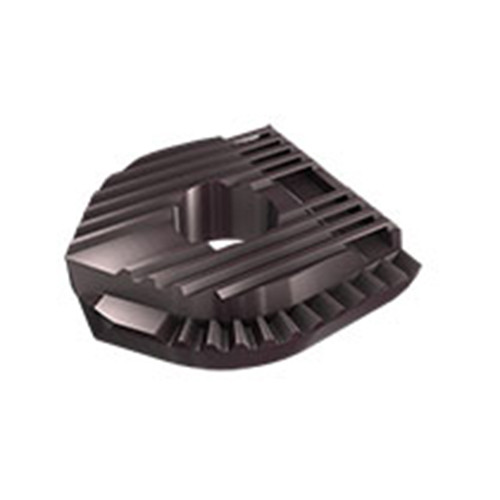

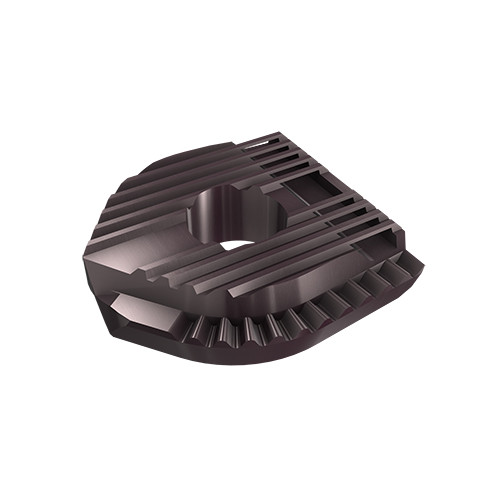

TBXR-875-N ZS26F
Milling Insert; TBXR 875 N ZS26F ZS26F ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Body Diameter (INSBD) | 1 |
| Application | | Ext Milling Rigid Lock | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.437″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.437″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.236″ | Tool Type | Single sided Inserts |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | ZS26F | Measurement Type | Inch |
| Insert Style | TBXR | Body Material | Carbide |
| Insert Size | 875 | Cutting Diameter (DC) | 7/8″ |
Product Features
| Family Description | RigidLock Roughing Ball Nose Style Milling Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.5
