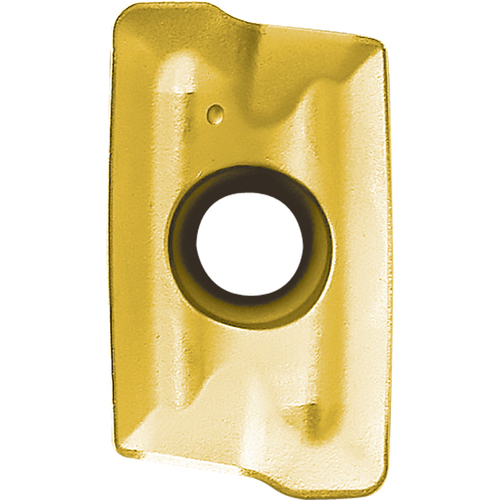

BDMT 11T316ERJT CA6535
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Insert Size | 11T316 |
| Application | Facing | Shouldering | Slotting | Helical Milling | Clearance Angle Major (AN) | 18 Degrees |

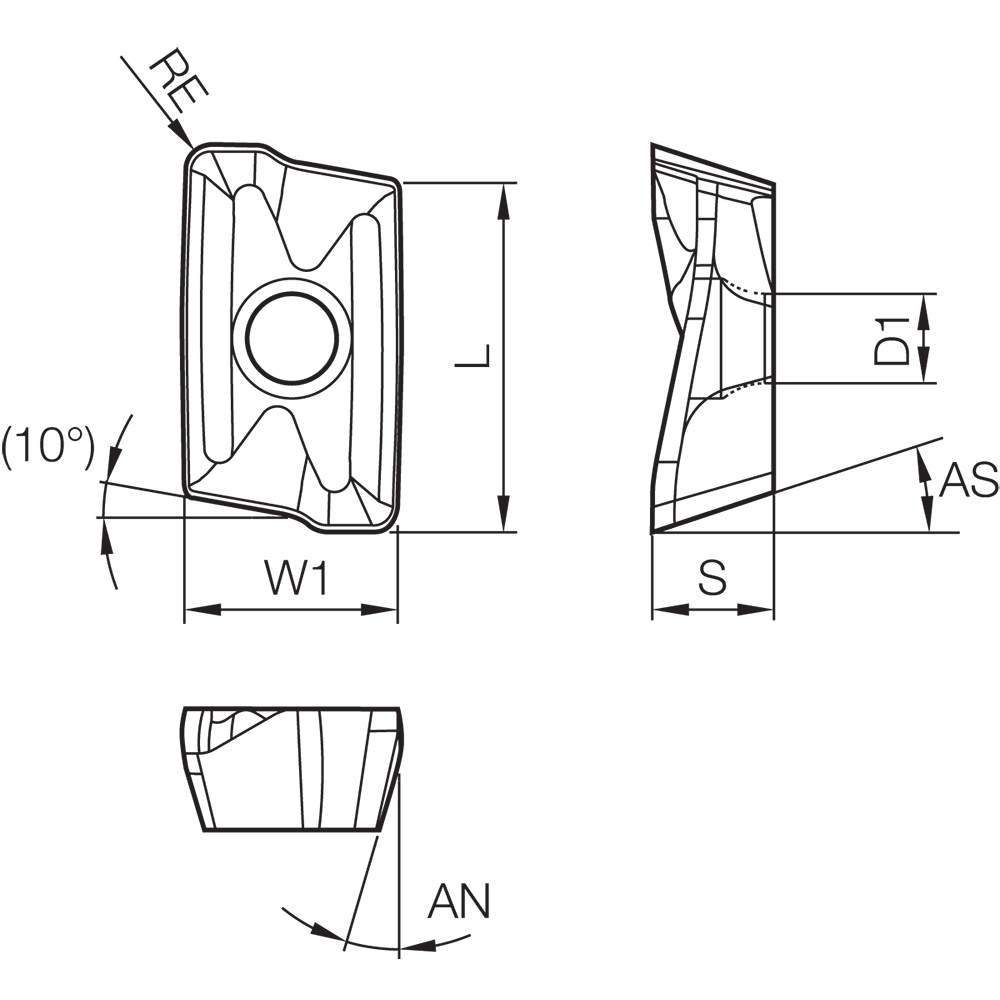

| Insert Length (INSL) | 0.4331″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/16″ | Chip Breaker Type | ER-JT |
| Insert Width (W1) | 0.2638″ | Series/List # | MEC-Series |
| Insert Thickness (S) | 0.1496″ | Hole Diameter | 0.1102″ |
| Insert Included Angle (EPSR) | 82 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Medium-Roughing |
| Grade | CA6535 | Coating Process | CVD |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | BDMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # BDMT11T316ERJTCA6535 | Country of Origin | Japan |
Shipping Info
Package Weight
.0992
