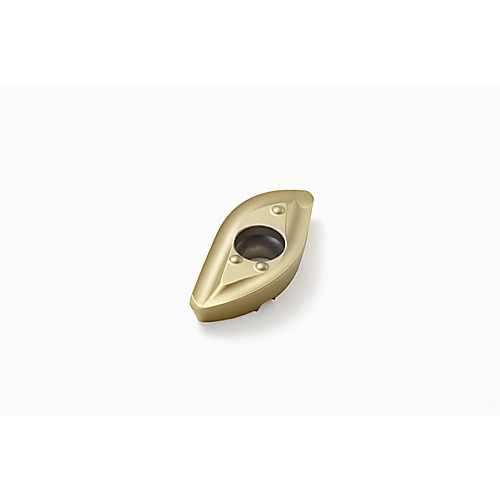

218.20-160ER-ME08 F40M
Milling Insert; 30.61 mm Length × 12.7 mm Width × 6.4 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 30.61 mm | Shape | Ball Nose |
| Corner Radius (RE) | 0.6299″ | Insert Size | 160ER |
| Depth of Cut Maximum (APMX) | 1.205″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 12.7 mm | Chip Breaker Type | ME08 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 6.4 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 6 Degrees | Number of Cutting Edges | 2 |
| Coating | TiAlN |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
