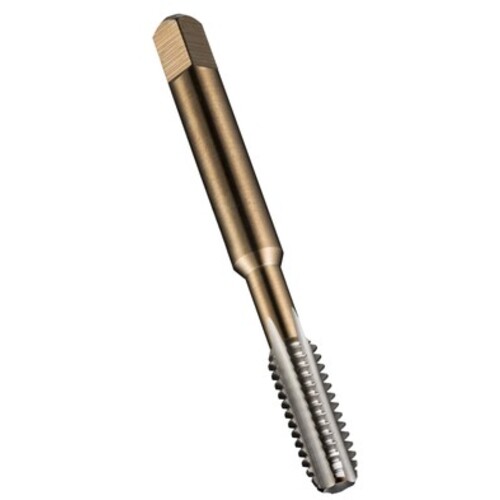

No.6-32 Dormer HSS Bright UNC Hand Tap Straight Flute ANSI Tap Set E-code # E0616-32NO6

Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | #6 | Overall Length (OAL) | 2″ |
| Thread Standard | NC | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Standard | ANSI | Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 32 | Flute Count (NOF) | 3 |
| Flute Type | Straight | Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | 2B | 3B | H3 | Application | Tapping |
| Tool Type | Hand Taps | Measurement Type | Wire Gauge |
| Flute Length | 0.58″ | Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Cutting Direction (HAND) | Right Hand | Series/List # | E061 |
| Coating | Uncoated | Thread Size | #6 - 32 |
Product Features
| Family Description | E-code # E0616-32NO6 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.595
