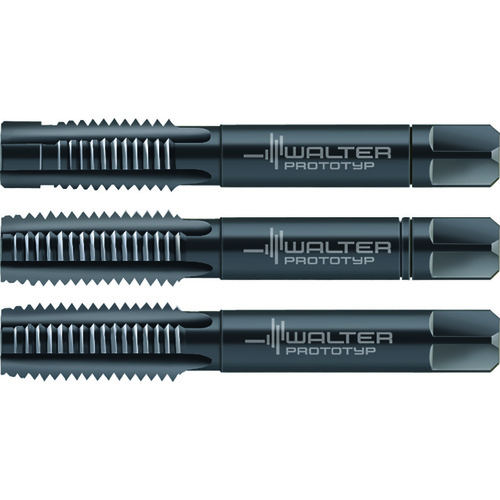

M2.5x0.45 6HX 3 Flute HSS VAP Hand Tap Set
30063-M2.5
| Thread Diameter Size (TDZ) | M2.5 | Coating | Uncoated |
| Thread Standard | Metric | Overall Length (OAL) | 40 mm |
| Standard | DIN 352 | Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Pitch in mm | 0.45 mm | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 6HX | Flute Count (NOF) | 3 |
| Tool Type | Hand Taps | Cutting Edge Material | HSS |
| Shank Type | Round w/ Drive Square | Thread Pitch (TP) | 0.45 mm |
| Flute Length | 14 mm | Thread Size | M2.5 × 0.45 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | 30063-M2.5 | Country of Origin | GERMANY |
Shipping Info
Package Weight
.013
