GX492915 M12X1.5 6HX 6L FT BOT CHSC

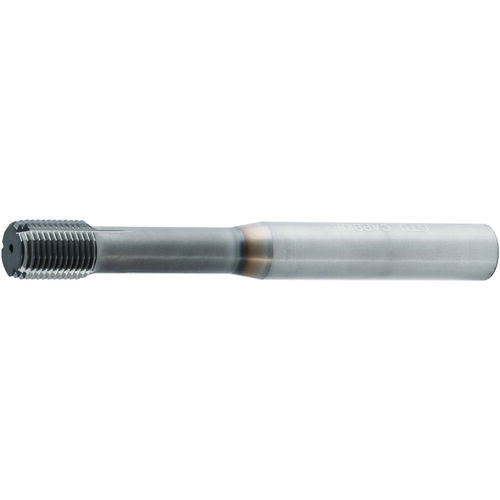

Forming Tap; M12 × 1.5 mm ; 100 mm OAL × 12 mm Shank Dia. ; Carbide ; 6HX
| Tool Type | High Performance Tap|Forming Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | M12 | Helix Angle | 45 Degrees|CW |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 1P-2P |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 14 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Style | Bottoming |
| Flute Count (NOF) | 6 | Cutting Edge Material | Carbide |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Neutral |
| Thread Standard | Metric | Thread Size | M12 × 1.5 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.306
